simple_flux_calculator.hpp File Reference

Simple flux calculator. More...

#include "flux_calculator_2d.hpp"
#include "../common/riemann_solver.hpp"

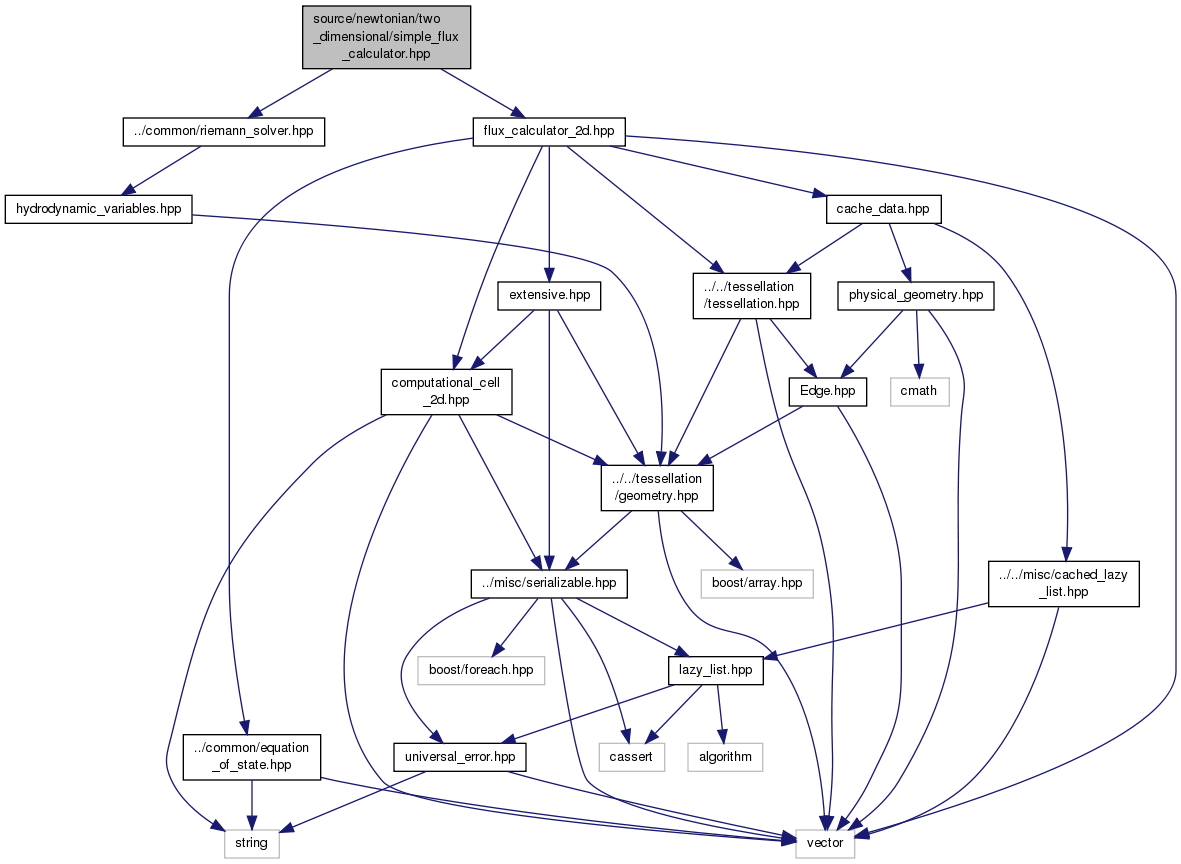

Include dependency graph for simple_flux_calculator.hpp:

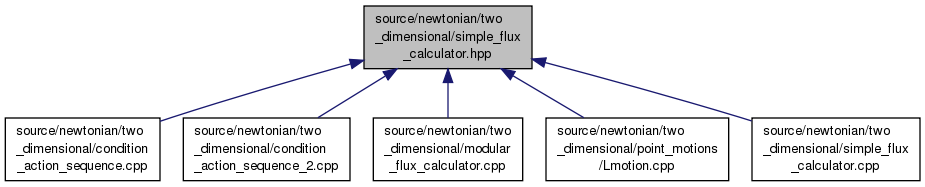

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	SimpleFluxCalculator
	Simple flux calculator. More...

Functions
Primitive	convert_to_primitive (const ComputationalCell &cell, const EquationOfState &eos, TracerStickerNames const &tracerstickernames)
	Converts computational cell to primitive variables. More...
Primitive	reflect (const Primitive &p, const Vector2D &axis)
	Reflects velocity about axis. More...
Vector2D	remove_parallel_component (const Vector2D &v, const Vector2D &p)
	Remove parallel component of a vector. More...
Conserved	rotate_solve_rotate_back (const RiemannSolver &rs, const Primitive &left, const Primitive &right, const double velocity, const Vector2D &n, const Vector2D &p)
	Rotates, solve riemann problem and rotates results back. More...

Detailed Description

Simple flux calculator.

Author

Almog Yalinewich

Definition in file simple_flux_calculator.hpp.

Function Documentation

convert_to_primitive()

Primitive convert_to_primitive	(	const ComputationalCell &	cell,
		const EquationOfState &	eos,
		TracerStickerNames const &	tracerstickernames
	)

Converts computational cell to primitive variables.

Parameters

cell	Computational cell
eos	Equation of state
tracerstickernames	The names of the tracers and stickers

Returns

Primitive variable

Definition at line 9 of file simple_flux_calculator.cpp.

Here is the call graph for this function:

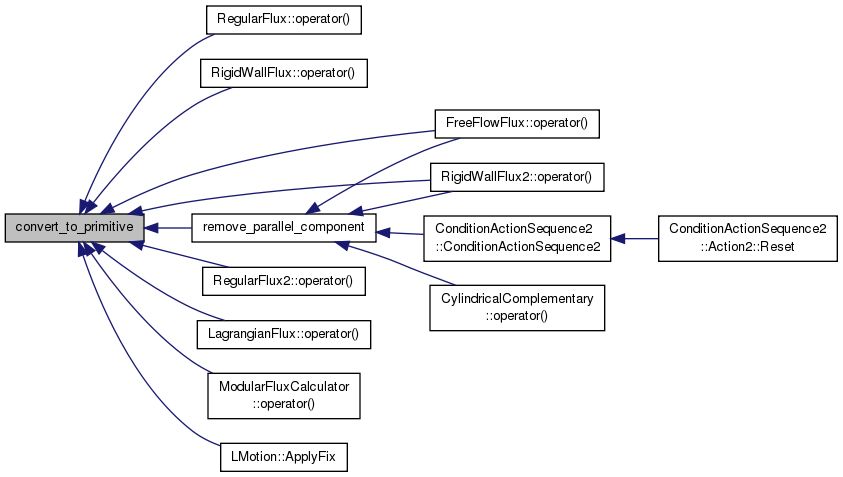

Here is the caller graph for this function:

reflect()

Primitive reflect	(	const Primitive &	p,
		const Vector2D &	axis
	)

Reflects velocity about axis.

Parameters

p	Primitive variables
axis	Reflection axis

Returns

Primitive variables with reflected velocity

Definition at line 17 of file simple_flux_calculator.cpp.

Here is the call graph for this function:

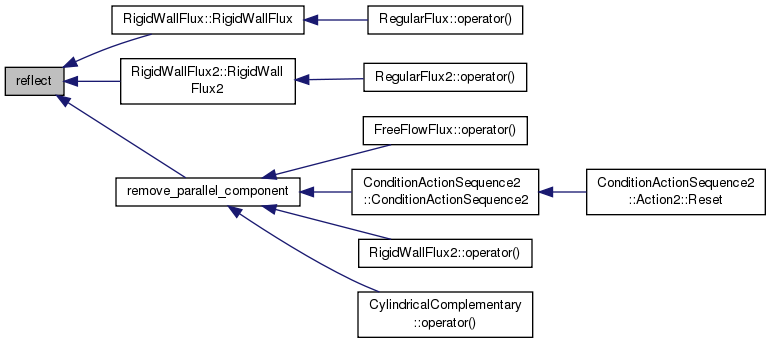

Here is the caller graph for this function:

remove_parallel_component()

Vector2D remove_parallel_component	(	const Vector2D &	v,
		const Vector2D &	p
	)

Remove parallel component of a vector.

Parameters

v	Vector
p	Parallel direction

Returns

v with parallel component removed

Definition at line 27 of file simple_flux_calculator.cpp.

Here is the call graph for this function:

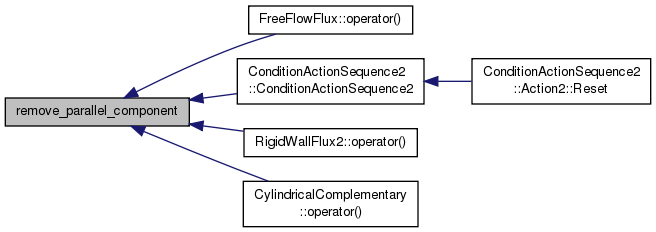

Here is the caller graph for this function:

rotate_solve_rotate_back()

Conserved rotate_solve_rotate_back	(	const RiemannSolver &	rs,
		const Primitive &	left,
		const Primitive &	right,
		const double	velocity,
		const Vector2D &	n,
		const Vector2D &	p
	)

Rotates, solve riemann problem and rotates results back.

Parameters

rs	Riemann solver
left	Primitive variables on the left side
right	Primitive variables on the right side
velocity	Velocity of the interface
n	Normal direction
p	Parallel direction

Returns

Hydrodynamic fluxes

Definition at line 156 of file simple_flux_calculator.cpp.

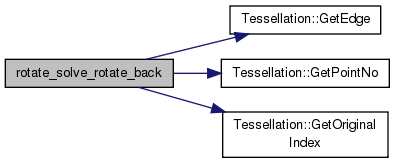

Here is the call graph for this function:

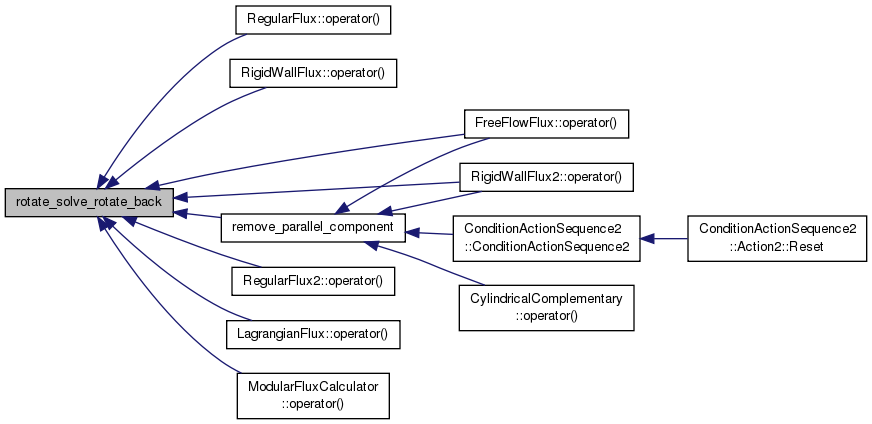

Here is the caller graph for this function:
