hydrodynamics_2d.hpp File Reference

Various manipulations of hydrodynamic variables. More...

#include "spatial_distribution2d.hpp"
#include "../common/equation_of_state.hpp"
#include "point_motion.hpp"
#include "spatial_reconstruction.hpp"
#include "SourceTerm.hpp"
#include "../../misc/utils.hpp"
#include "../../misc/lazy_list.hpp"
#include "../common/hydrodynamics.hpp"
#include "../../misc/universal_error.hpp"
#include "../../tessellation/ConvexHull.hpp"
#include "../../tessellation/polygon_overlap_area.hpp"
#include <boost/scoped_ptr.hpp>
#include "../../tessellation/EdgeLengthCorrect.hpp"
#include "physical_geometry.hpp"
#include "time_step_function.hpp"
#include "cache_data.hpp"
#include "../common/riemann_solver.hpp"

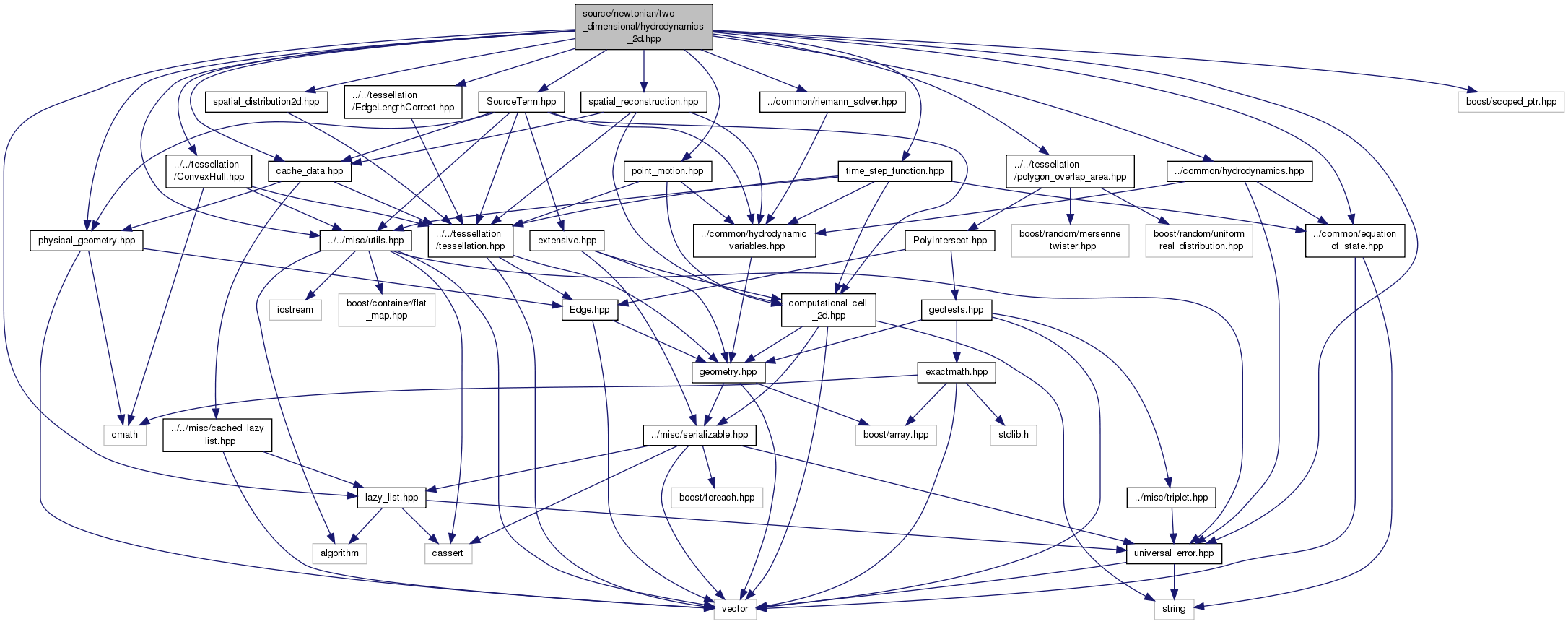

Include dependency graph for hydrodynamics_2d.hpp:

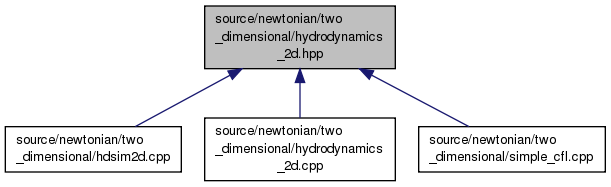

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

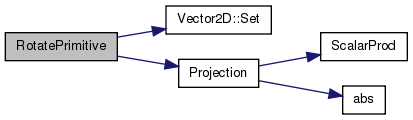

Primitive	RotatePrimitive (const Vector2D &normaldir, const Vector2D &paraldir, const Primitive &p)
	Rotates primitive variables to align with edge. More...
Conserved	RotateFluxBack (const Conserved &c, const Vector2D &n, const Vector2D &p)
	Rotates flux from the edge frame back to the lab frame. More...
int	get_other_index (const Edge &edge, const int index)
	Given an edge and an index of one neighbor, returns the index of another neighbor. More...
vector< Primitive >	InitialiseCells (SpatialDistribution const &density, SpatialDistribution const &pressure, SpatialDistribution const &xvelocity, SpatialDistribution const &yvelocity, EquationOfState const &eos, Tessellation const &tess, bool CMvalue=true)
	Initialize computational cells. More...
vector< Conserved >	CalcConservedIntensive (vector< Primitive > const &cells)
	Calculates the intensive conserved variables. More...
vector< Conserved >	CalcConservedExtensive (const vector< Conserved > &cons_int, const Tessellation &tess, const PhysicalGeometry &pg)
	Calculates the extensive conserved variables. More...
double	TimeStepForCell (Primitive const &cell, double width, vector< Vector2D > const &face_velocites)
	Calculates the time step for a cell. More...

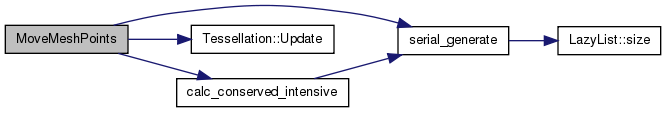

vector< int >	MoveMeshPoints (vector< Vector2D > const &pointvelocity, double dt, Tessellation &tessellation, bool reorder, vector< Vector2D > oldpoints=vector< Vector2D >())
	Move mesh points. More...
vector< int >	MoveMeshPoints (vector< Vector2D > const &pointvelocity, double dt, Tessellation &tessellation, Tessellation const &vproc, bool reorder, vector< Vector2D > oldpoints=vector< Vector2D >())
	Move mesh points. More...
vector< Conserved >	calc_conserved_intensive (const Tessellation &tess, const vector< Conserved > &extensive, const PhysicalGeometry &pg)
	Calculates the intensive conserved variables. More...
void	UpdateConservedIntensive (Tessellation const &tessellation, vector< Conserved > const &conservedextensive, vector< Conserved > &conservedintensive)
	Updates the intensive conserved variables. More...
Conserved	FluxInBulk (Vector2D const &normaldir, Vector2D const &paraldir, Primitive const &left, Primitive const &right, Vector2D const &edge_velocity, RiemannSolver const &rs)
	Calculates the flux in the bulk of the fluid. More...
void	ExternalForceContribution (const Tessellation &tess, const PhysicalGeometry &pg, const CacheData &cd, const vector< ComputationalCell > &cells, const vector< Extensive > &fluxes, const vector< Vector2D > &point_velocities, const SourceTerm &source, double t, double dt, vector< Extensive > &extensives, TracerStickerNames const &tracerstickernames)
	Adds force contribution to the extensive conserved variables. More...
vector< Vector2D >	get_all_mesh_points (Tessellation const &tess)
	Returns the position of all mesh generating points. More...
vector< Primitive >	make_eos_consistent (vector< Primitive > const &vp, EquationOfState const &eos)
	Changes the energy and sound speed so they would satisfy the equation of state. More...
vector< double >	GetForceEnergy (Tessellation const &tess, vector< double > const &g)
	Returns the energies due to external potentials. More...
vector< vector< double > >	calc_extensive_tracer (const vector< vector< double > > &intensive_tracer, const Tessellation &tess, const vector< Primitive > &cells, const PhysicalGeometry &pg)
	Calculates extensive tracers. More...
void	MakeTracerExtensive (vector< vector< double > > const &tracer, Tessellation const &tess, vector< Primitive > const &cells, vector< vector< double > > &result)
	Calculates the extensive tracer. More...
void	GetPointToRemove (Tessellation const &tess, Vector2D const &point, double R, vector< int > &PointToRemove, int Inner)
	Makes a list of points to remove. More...
void	FixAdvection (vector< Conserved > &extensive, vector< Conserved > const &intensive, Tessellation const &tessold, Tessellation const &tessnew, vector< Vector2D > const &facevelocity, double dt, vector< Vector2D > const &pointvelocity)
	Applies a correction to the extensive variables due to the change in volume during time step. More...
double	determine_time_step (double hydro_time_step, double external_dt, double current_time, double end_time)
	Determines the time step. More...

Detailed Description

Various manipulations of hydrodynamic variables.

Author

Almog Yalinewich

Definition in file hydrodynamics_2d.hpp.

Function Documentation

calc_conserved_intensive()

vector<Conserved> calc_conserved_intensive	(	const Tessellation &	tess,
		const vector< Conserved > &	extensive,
		const PhysicalGeometry &	pg
	)

Calculates the intensive conserved variables.

Parameters

tess	Tessellation
extensive	Extensive conserved variables
pg	Physical geometry

Returns

List of intensive conserved variables

Definition at line 296 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

calc_extensive_tracer()

vector<vector<double> > calc_extensive_tracer	(	const vector< vector< double > > &	intensive_tracer,
		const Tessellation &	tess,
		const vector< Primitive > &	cells,
		const PhysicalGeometry &	pg
	)

Calculates extensive tracers.

Parameters

intensive_tracer	Intensive tracers
tess	Tessellation
cells	List of primitive variables
pg	Physical geometry

Returns

List of extensive tracers

Definition at line 453 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

CalcConservedExtensive()

vector<Conserved> CalcConservedExtensive	(	const vector< Conserved > &	cons_int,
		const Tessellation &	tess,
		const PhysicalGeometry &	pg
	)

Calculates the extensive conserved variables.

Parameters

cons_int	Conserved intensive variables
tess	Tessellation
pg	Physical geometry

Returns

List of conserved variables

Definition at line 190 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

CalcConservedIntensive()

vector<Conserved> CalcConservedIntensive

(

vector< Primitive > const &

cells

)

Calculates the intensive conserved variables.

Parameters

cells

Hydrodynamical cells

Returns

List of conserved variables

Definition at line 133 of file hydrodynamics_2d.cpp.

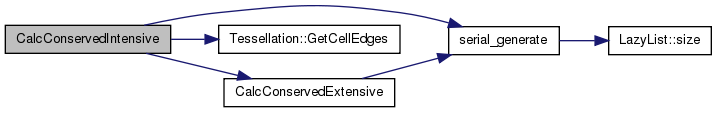

Here is the call graph for this function:

Here is the caller graph for this function:

determine_time_step()

double determine_time_step	(	double	hydro_time_step,
		double	external_dt,
		double	current_time,
		double	end_time
	)

Determines the time step.

Parameters

hydro_time_step	Time step derived from hydrodynamics
external_dt	Time step suggested by user
current_time	Current simulation time
end_time	Termination time

Returns

Time step

Definition at line 566 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

ExternalForceContribution()

void ExternalForceContribution	(	const Tessellation &	tess,
		const PhysicalGeometry &	pg,
		const CacheData &	cd,
		const vector< ComputationalCell > &	cells,
		const vector< Extensive > &	fluxes,
		const vector< Vector2D > &	point_velocities,
		const SourceTerm &	source,
		double	t,
		double	dt,
		vector< Extensive > &	extensives,
		TracerStickerNames const &	tracerstickernames
	)

Adds force contribution to the extensive conserved variables.

Parameters

tess	Tessellation
pg	Physical geometry
cd	Cache data
cells	Computational cells
fluxes	Fluxes
point_velocities	Velocities of the mesh generating points
source	Source term
t	Time
dt	Time step
extensives	Extensive variables
tracerstickernames	The names of the tracers and stickers

Definition at line 349 of file hydrodynamics_2d.cpp.

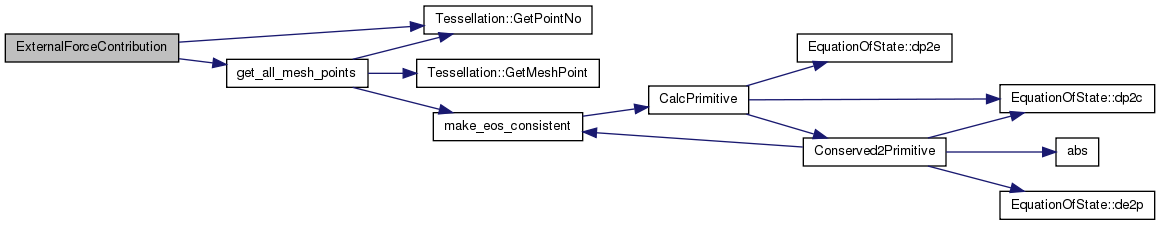

Here is the call graph for this function:

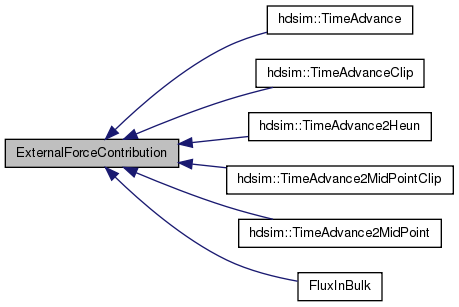

Here is the caller graph for this function:

FixAdvection()

void FixAdvection	(	vector< Conserved > &	extensive,
		vector< Conserved > const &	intensive,
		Tessellation const &	tessold,
		Tessellation const &	tessnew,
		vector< Vector2D > const &	facevelocity,
		double	dt,
		vector< Vector2D > const &	pointvelocity
	)

Applies a correction to the extensive variables due to the change in volume during time step.

This method calculates the change in extensive by calculating the volume swept by an edge and multiplying it by the intensive variables of the respective cell.

Parameters

extensive	Extensive variables
intensive	Intensive variables
tessold	Old tessellation
tessnew	New tessellation
facevelocity	Face velocity
dt	Time step
pointvelocity	Velocities of mesh generating points

Definition at line 496 of file hydrodynamics_2d.cpp.

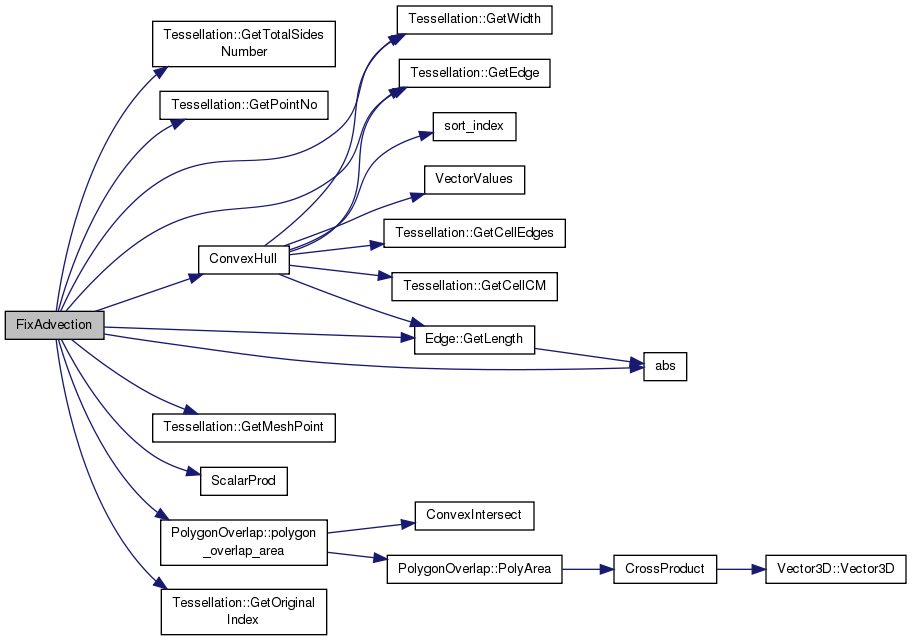

Here is the call graph for this function:

FluxInBulk()

Conserved FluxInBulk	(	Vector2D const &	normaldir,
		Vector2D const &	paraldir,
		Primitive const &	left,
		Primitive const &	right,
		Vector2D const &	edge_velocity,
		RiemannSolver const &	rs
	)

Calculates the flux in the bulk of the fluid.

Parameters

normaldir	A unit vector normal to the interface
paraldir	A unit vector parallel to the interface
left	Primitive variables on the left side of the interface
right	Primitive variables on the right side of the interface
edge_velocity	Velocity of the interface
rs	Riemann solver

Returns

Flux

Definition at line 334 of file hydrodynamics_2d.cpp.

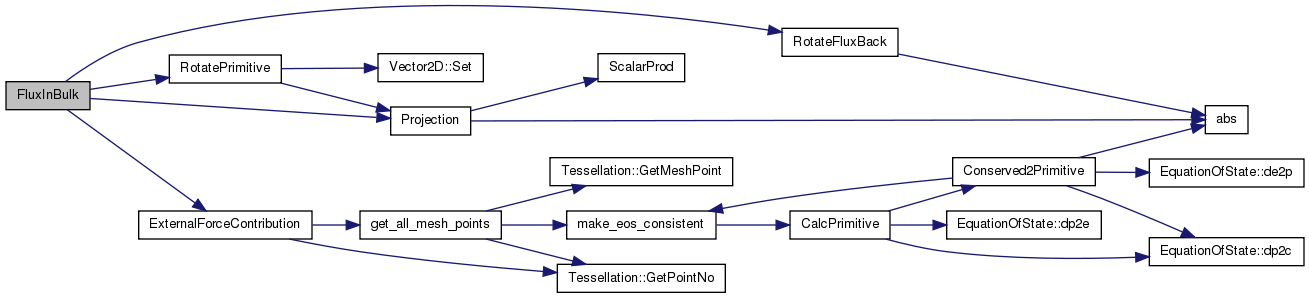

Here is the call graph for this function:

get_all_mesh_points()

vector<Vector2D> get_all_mesh_points

(

Tessellation const &

tess

)

Returns the position of all mesh generating points.

Parameters

tess	Tessellation

Returns

Position of all mesh generating points

Definition at line 375 of file hydrodynamics_2d.cpp.

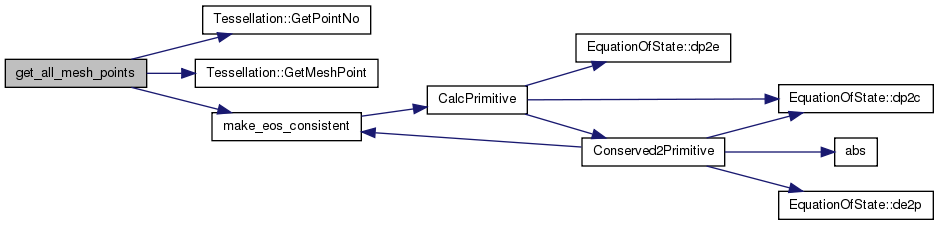

Here is the call graph for this function:

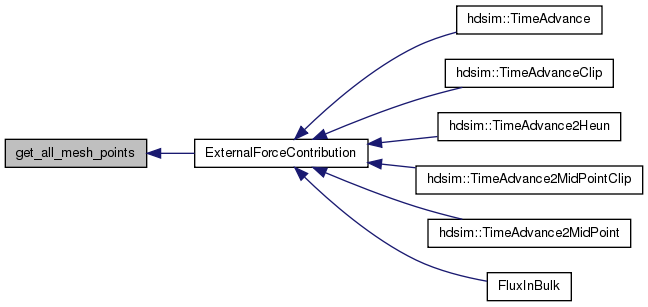

Here is the caller graph for this function:

get_other_index()

int get_other_index	(	const Edge &	edge,
		const int	index
	)

Given an edge and an index of one neighbor, returns the index of another neighbor.

Parameters

edge	Voronoi edge
index	Index of one neighbor

Returns

Index of the other neighbor

Definition at line 7 of file hydrodynamics_2d.cpp.

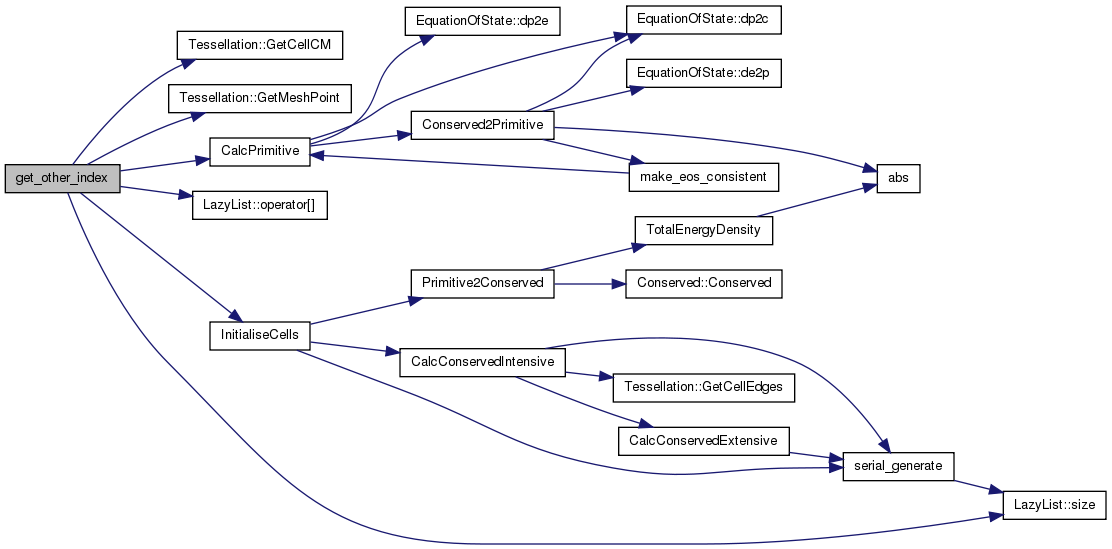

Here is the call graph for this function:

GetForceEnergy()

vector<double> GetForceEnergy	(	Tessellation const &	tess,
		vector< double > const &	g
	)

Returns the energies due to external potentials.

Parameters

tess	Tessellation
g	TBA

Returns

TBA

Todo:

Add documentation

Definition at line 393 of file hydrodynamics_2d.cpp.

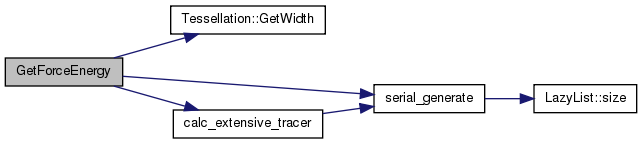

Here is the call graph for this function:

GetPointToRemove()

void GetPointToRemove	(	Tessellation const &	tess,
		Vector2D const &	point,
		double	R,
		vector< int > &	PointToRemove,
		int	Inner
	)

Makes a list of points to remove.

Parameters

tess	Tessellation
point	TBA
R	Radius?
PointToRemove	output
Inner	TBA

Todo:

Add documentation

Definition at line 476 of file hydrodynamics_2d.cpp.

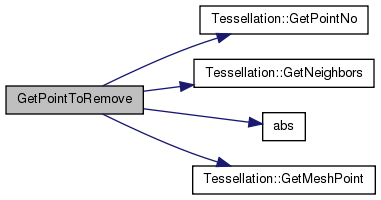

Here is the call graph for this function:

InitialiseCells()

vector<Primitive> InitialiseCells	(	SpatialDistribution const &	density,
		SpatialDistribution const &	pressure,
		SpatialDistribution const &	xvelocity,
		SpatialDistribution const &	yvelocity,
		EquationOfState const &	eos,
		Tessellation const &	tess,
		bool	CMvalue = true
	)

Initialize computational cells.

Parameters

density	Density distribution
pressure	Pressure distribution
xvelocity	Distribution of the x component of the velocity
yvelocity	Distribution of the y component of the velocity
eos	Equation of state
tess	Tessellation
CMvalue	Determines whether to evaluate the spatial distributions in the mesh generating points or the center of mass

Returns

List of primitive variables

Definition at line 95 of file hydrodynamics_2d.cpp.

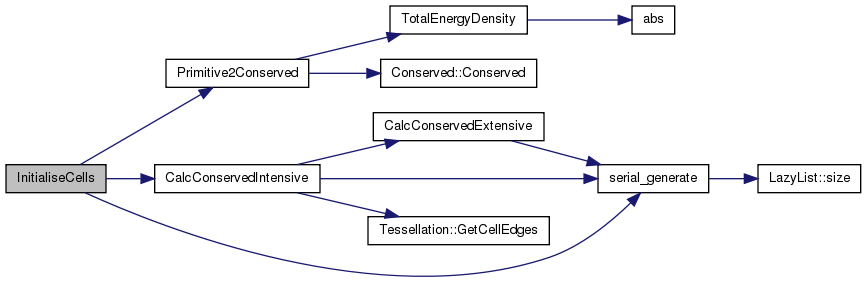

Here is the call graph for this function:

Here is the caller graph for this function:

make_eos_consistent()

vector<Primitive> make_eos_consistent	(	vector< Primitive > const &	vp,
		EquationOfState const &	eos
	)

Changes the energy and sound speed so they would satisfy the equation of state.

Parameters

vp	Primitive variables
eos	Equation of state

Returns

Primitive variable with corrected sound speed and energy

Definition at line 384 of file hydrodynamics_2d.cpp.

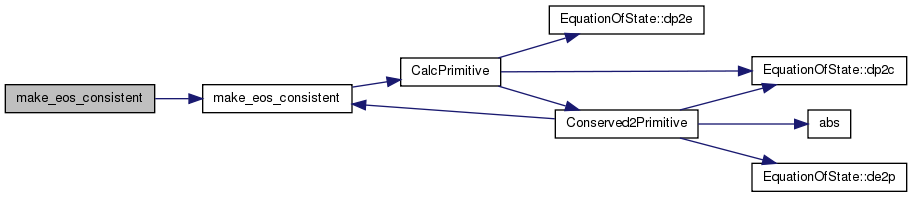

Here is the call graph for this function:

MakeTracerExtensive()

void MakeTracerExtensive	(	vector< vector< double > > const &	tracer,
		Tessellation const &	tess,
		vector< Primitive > const &	cells,
		vector< vector< double > > &	result
	)

Calculates the extensive tracer.

Parameters

tracer	Intensive tracer
tess	Tessellation
cells	Fluid elements
result	List of extensive tracers

Definition at line 464 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

MoveMeshPoints() [1/2]

vector<int> MoveMeshPoints	(	vector< Vector2D > const &	pointvelocity,
		double	dt,
		Tessellation &	tessellation,
		bool	reorder,
		vector< Vector2D >	oldpoints = vector< Vector2D >()
	)

Move mesh points.

Parameters

pointvelocity	Velocities of all mesh points
dt	Time step
tessellation	Tessellation
oldpoints	Possible input for the location of the old points
reorder	Should we reorder the points

Returns

The indeces of the hilbert order of the points

Definition at line 235 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

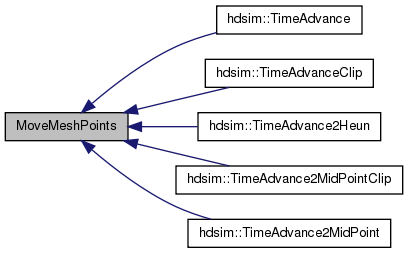

Here is the caller graph for this function:

MoveMeshPoints() [2/2]

vector<int> MoveMeshPoints	(	vector< Vector2D > const &	pointvelocity,
		double	dt,
		Tessellation &	tessellation,
		Tessellation const &	vproc,
		bool	reorder,
		vector< Vector2D >	oldpoints = vector< Vector2D >()
	)

Move mesh points.

Parameters

pointvelocity	Velocities of all mesh points
dt	Time step
tessellation	The local tessellation
vproc	The processor tessellation
oldpoints	Possible input for the location of the old points
reorder	Should we reorder the points

Returns

The indeces of the hilbert order of the points

Definition at line 250 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

RotateFluxBack()

Conserved RotateFluxBack	(	const Conserved &	c,
		const Vector2D &	n,
		const Vector2D &	p
	)

Rotates flux from the edge frame back to the lab frame.

Parameters

c	Flux
n	Normal direction
p	Parallel direction

Returns

Rotated flux

Definition at line 324 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

RotatePrimitive()

Primitive RotatePrimitive	(	const Vector2D &	normaldir,
		const Vector2D &	paraldir,
		const Primitive &	p
	)

Rotates primitive variables to align with edge.

Parameters

normaldir	Normal directions
paraldir	Parallel direction
p	Primitive variables

Returns

Rotated cell

Definition at line 314 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

TimeStepForCell()

double TimeStepForCell	(	Primitive const &	cell,
		double	width,
		vector< Vector2D > const &	face_velocites
	)

Calculates the time step for a cell.

Parameters

cell	Computational cell
width	Cell width
face_velocites	Velocities of the edges of the cell

Returns

Time step

Definition at line 197 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:

UpdateConservedIntensive()

void UpdateConservedIntensive	(	Tessellation const &	tessellation,
		vector< Conserved > const &	conservedextensive,
		vector< Conserved > &	conservedintensive
	)

Updates the intensive conserved variables.

Parameters

tessellation	Tessellation
conservedextensive	Extensive conserved variables
conservedintensive	Intensive conserved variables

Definition at line 303 of file hydrodynamics_2d.cpp.

Here is the call graph for this function:
