RoundCells Class Reference

Correction to point velocities that keeps cells round. More...

#include <round_cells.hpp>

Inheritance diagram for RoundCells:

Collaboration diagram for RoundCells:

Public Member Functions
	RoundCells (const PointMotion &pm, const EquationOfState &eos, OuterBoundary const &outer, double chi=0.15, double eta=0.02, bool cold=false, double cold_speed=0.15)
	Class constructor. More...
	RoundCells (const PointMotion &pm, const EquationOfState &eos, double chi=0.15, double eta=0.02, bool cold=false, double cold_speed=0.15)
	Class constructor. More...
vector< Vector2D >	operator() (const Tessellation &tess, const vector< ComputationalCell > &cells, double time, TracerStickerNames const &tracerstickernames) const
	Calculates the velocity of all mesh points. More...
vector< Vector2D >	ApplyFix (Tessellation const &tess, vector< ComputationalCell > const &cells, double time, double dt, vector< Vector2D > const &velocities, TracerStickerNames const &tracerstickernames) const
	Applies a small fix to the velocity of all mesh points once the time step is known. More...
Public Member Functions inherited from PointMotion
virtual	~PointMotion (void)
	Virtual destructor.

Detailed Description

Correction to point velocities that keeps cells round.

Based on equation 63 in the Arepo paper

Definition at line 16 of file round_cells.hpp.

Constructor & Destructor Documentation

RoundCells() [1/2]

RoundCells::RoundCells	(	const PointMotion &	pm,
		const EquationOfState &	eos,
		OuterBoundary const &	outer,
		double	chi = 0.15,
		double	eta = 0.02,
		bool	cold = false,
		double	cold_speed = 0.15
	)

Class constructor.

Parameters

pm	Base point motion
eos	Equation of state
outer	The outer boudnary conditions, used for preventing points from getting outside the box. If periodic then no fix is applied
chi	chi parameter in equation 63
eta	eta parameter in equation 63
cold	Switch for cold flows

Definition at line 7 of file round_cells.cpp.

RoundCells() [2/2]

RoundCells::RoundCells	(	const PointMotion &	pm,
		const EquationOfState &	eos,
		double	chi = 0.15,
		double	eta = 0.02,
		bool	cold = false,
		double	cold_speed = 0.15
	)

Class constructor.

Parameters

pm	Base point motion
eos	Equation of state
chi	chi parameter in equation 63
eta	eta parameter in equation 63
cold	Switch for cold flows

Definition at line 10 of file round_cells.cpp.

Here is the call graph for this function:

Member Function Documentation

ApplyFix()

vector< Vector2D > RoundCells::ApplyFix ( Tessellation const &  tess, vector< ComputationalCell > const &  cells, double  time, double  dt, vector< Vector2D > const &  velocities, TracerStickerNames const &  tracerstickernames  ) const

virtual

Applies a small fix to the velocity of all mesh points once the time step is known.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
velocities	Velocities of the points
dt	The time step
tracerstickernames	The names of the tracers and stickers

Returns

The new velocities

Reimplemented from PointMotion.

Definition at line 117 of file round_cells.cpp.

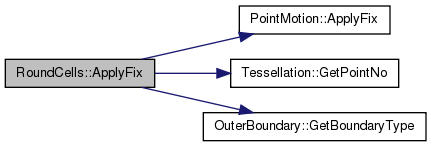

Here is the call graph for this function:

operator()()

vector< Vector2D > RoundCells::operator() ( const Tessellation &  tess, const vector< ComputationalCell > &  cells, double  time, TracerStickerNames const &  tracerstickernames  ) const

virtual

Calculates the velocity of all mesh points.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
tracerstickernames	The names of the tracers and stickers

Returns

Velocities of the points

Implements PointMotion.

Definition at line 101 of file round_cells.cpp.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/newtonian/two_dimensional/point_motions/round_cells.hpp
• source/newtonian/two_dimensional/point_motions/round_cells.cpp
