A flux scheme that minimises mass transfer between cells. More...

Inheritance diagram for LagrangianFlux:

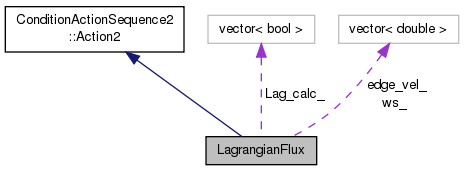

Collaboration diagram for LagrangianFlux:

Classes
class	LagrangianCriteria
	Condition on when to apply mass transfer fix. More...

Public Member Functions
	LagrangianFlux (const LagrangianHLLC &rs, const LagrangianHLLC &rs2, LagrangianCriteria const &criteria)
	Class constructor. More...

void	operator() (const Edge &edge, const size_t index, const Tessellation &tess, const Vector2D &edge_velocity, const vector< ComputationalCell > &cells, const EquationOfState &eos, const bool aux, const pair< ComputationalCell, ComputationalCell > &edge_values, Extensive &res, double time, TracerStickerNames const &tracerstickernames) const
	Calculates flux. More...

void	Reset (void) const
	Resets the internal variables.

Public Attributes
vector< double >	ws_
	Velocity of the interfaces.

vector< double >	edge_vel_
	Velocity of the edges.

vector< bool >	Lag_calc_
	Was this edge calculated Lagrangialy.

Detailed Description

A flux scheme that minimises mass transfer between cells.

Constructor & Destructor Documentation

LagrangianFlux::LagrangianFlux	(	const LagrangianHLLC &	rs,
		const LagrangianHLLC &	rs2,
		LagrangianCriteria const &	criteria
	)

Class constructor.

Parameters

rs	Riemann solver with no mass flux
rs2	Riemann solver with mass flux
criteria	The criteria for calculating mass flux

Here is the caller graph for this function:

void LagrangianFlux::operator()	(	const Edge &	edge,
		const size_t	index,
		const Tessellation &	tess,
		const Vector2D &	edge_velocity,
		const vector< ComputationalCell > &	cells,
		const EquationOfState &	eos,
		const bool	aux,
		const pair< ComputationalCell, ComputationalCell > &	edge_values,
		Extensive &	res,
		double	time,
		TracerStickerNames const &	tracerstickernames
	)		const

virtual

Calculates flux.

Parameters

edge	Interface between cells
index	The index of the edge
tess	Tessellation
cells	Computational cells
eos	Equation of state
aux	Auxiliary variable for assymetric problems (true means the relevant cell is on the left side, false mean right)
edge_values	The interpolated values at the edge
edge_velocity	Velocity of the edges
res	The flux given as output
time	The time
tracerstickernames	The names of the tracers and stickers

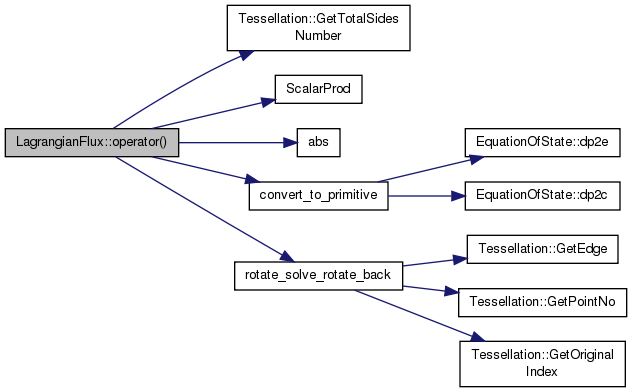

Here is the call graph for this function:

The documentation for this class was generated from the following files:
