Point motion that minimises advection. More...

#include <Lmotion.hpp>

Inheritance diagram for LMotion:

Collaboration diagram for LMotion:

Public Member Functions
	LMotion (SpatialReconstruction const &interp, EquationOfState const &eos)
	Class constructor. More...

vector< Vector2D >	operator() (const Tessellation &tess, const vector< ComputationalCell > &cells, double time, TracerStickerNames const &tracerstickernames) const
	Calculates the velocity of all mesh points. More...

vector< Vector2D >	ApplyFix (Tessellation const &tess, vector< ComputationalCell > const &cells, double time, double dt, vector< Vector2D > const &velocities, TracerStickerNames const &tracerstickernames) const
	Applies a small fix to the velocity of all mesh points once the time step is known. More...

Public Member Functions inherited from PointMotion
virtual	~PointMotion (void)
	Virtual destructor.

Detailed Description

Point motion that minimises advection.

Definition at line 10 of file Lmotion.hpp.

Constructor & Destructor Documentation

LMotion::LMotion	(	SpatialReconstruction const &	interp,
		EquationOfState const &	eos
	)

Class constructor.

Parameters

interp	Interpolation scheme
eos	Equation of state

Definition at line 29 of file Lmotion.cpp.

vector< Vector2D > LMotion::ApplyFix	(	Tessellation const &	tess,
		vector< ComputationalCell > const &	cells,
		double	time,
		double	dt,
		vector< Vector2D > const &	velocities,
		TracerStickerNames const &	tracerstickernames
	)		const

virtual

Applies a small fix to the velocity of all mesh points once the time step is known.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
velocities	Velocities of the points
dt	The time step
tracerstickernames	The names of the tracers and stickers

Reimplemented from PointMotion.

Definition at line 41 of file Lmotion.cpp.

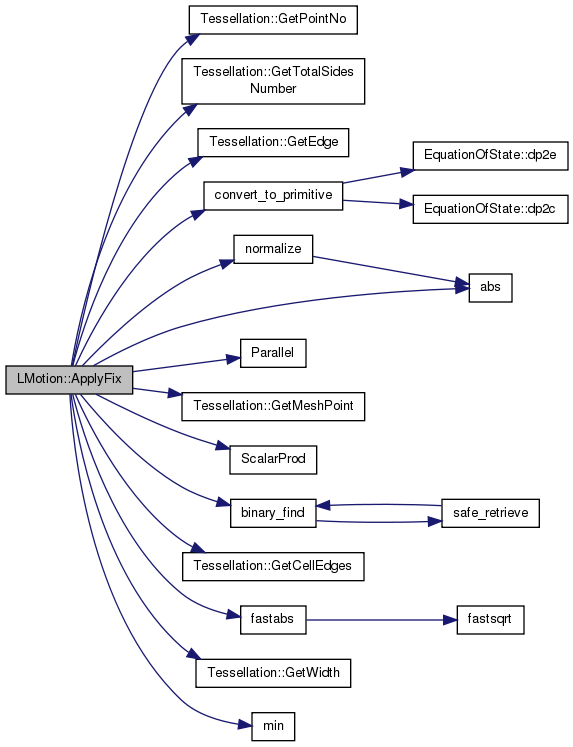

Here is the call graph for this function:

vector< Vector2D > LMotion::operator()	(	const Tessellation &	tess,
		const vector< ComputationalCell > &	cells,
		double	time,
		TracerStickerNames const &	tracerstickernames
	)		const

virtual

Calculates the velocity of all mesh points.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
tracerstickernames	The names of the tracers and stickers

Implements PointMotion.

Definition at line 31 of file Lmotion.cpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:
