find_affected_cells.hpp File Reference

Determines which cells might be affected by boundary conditions. More...

#include <vector>
#include "tessellation.hpp"
#include "shape_2d.hpp"

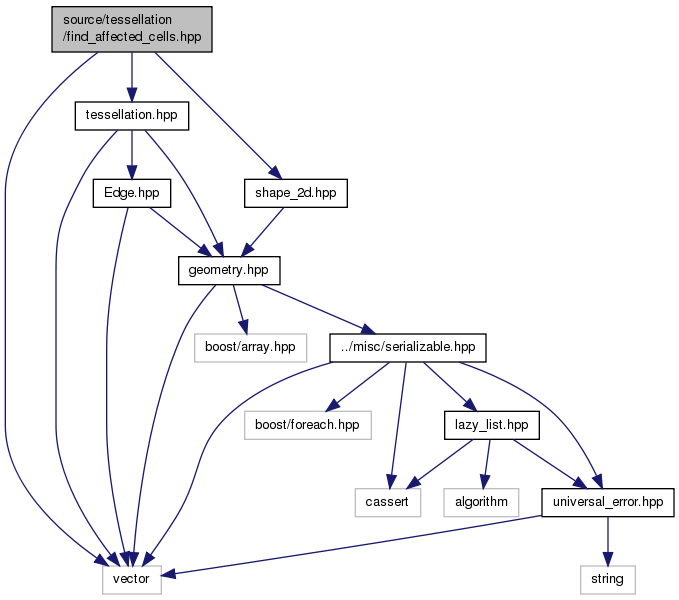

Include dependency graph for find_affected_cells.hpp:

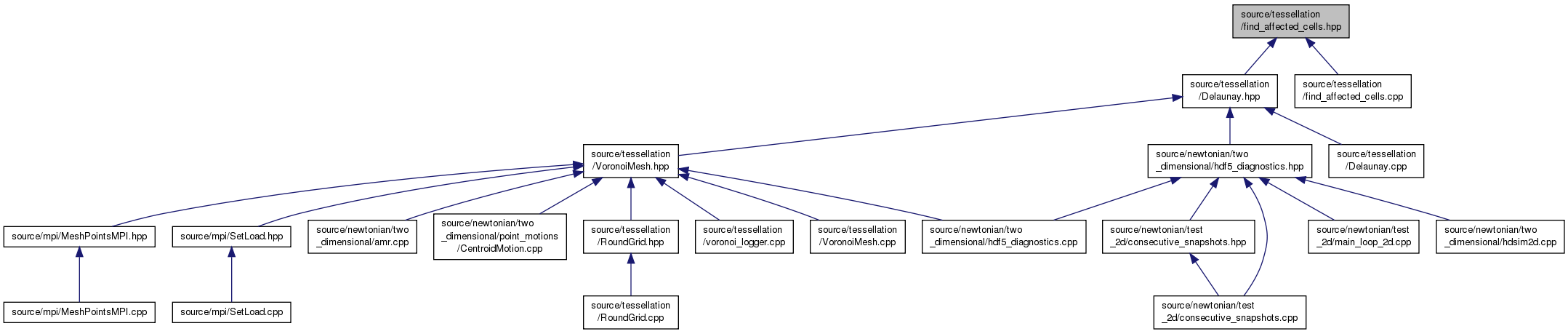

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
bool	edge_circle_intersect (const Edge &edge, const Circle &circle)
	Determines if an edge and a circle intersect. More...
void	find_affected_cells_recursive (const Tessellation &tess, int index, const Circle &circle, vector< int > &res, std::vector< Vector2D > &added, bool periodic, Vector2D const &ll, Vector2D const &ur)
	Recursively finds all cells that intersect a circle. More...
vector< int >	find_affected_cells (const Tessellation &tess, int index, Circle &circle, vector< int > &vtemp, bool periodic, std::vector< Vector2D > &periodic_add)
	Non recursive version of find affected cells. Only searches one degree of separation. More...

Detailed Description

Determines which cells might be affected by boundary conditions.

Author

Almog Yalinewich

Definition in file find_affected_cells.hpp.

Function Documentation

edge_circle_intersect()

bool edge_circle_intersect	(	const Edge &	edge,
		const Circle &	circle
	)

Determines if an edge and a circle intersect.

Parameters

edge	Edge
circle	Circle

Returns

True if both intersect, false otherwise

Definition at line 63 of file find_affected_cells.cpp.

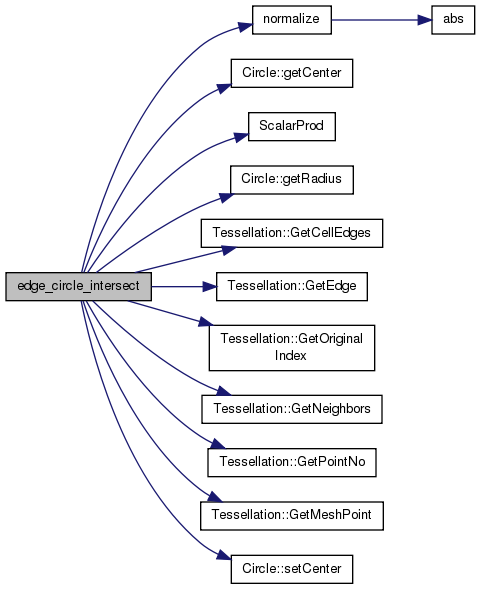

Here is the call graph for this function:

Here is the caller graph for this function:

find_affected_cells()

vector<int> find_affected_cells	(	const Tessellation &	tess,
		int	index,
		Circle &	circle,
		vector< int > &	vtemp,
		bool	periodic,
		std::vector< Vector2D > &	periodic_add
	)

Non recursive version of find affected cells. Only searches one degree of separation.

Parameters

tess	Tessellation
index	Cell index
circle	Circle
vtemp	Temperaroy object for not reallocating on heap
periodic	Whether periodic boundary conditions are used
periodic_add	List of points to add due to periodic boundary conditions

Returns

Vector with indices of affected cells

Definition at line 136 of file find_affected_cells.cpp.

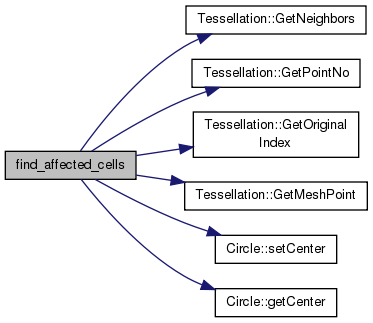

Here is the call graph for this function:

Here is the caller graph for this function:

find_affected_cells_recursive()

void find_affected_cells_recursive	(	const Tessellation &	tess,
		int	index,
		const Circle &	circle,
		vector< int > &	res,
		std::vector< Vector2D > &	added,
		bool	periodic,
		Vector2D const &	ll,
		Vector2D const &	ur
	)

Recursively finds all cells that intersect a circle.

Parameters

tess	Tessellation
index	Current cell index
circle	Circle
res	List of cell indices that intersect the circle
added	The Vector2D to add to the duplicated point (for periodic boundaries)
periodic	Flag if periodic boundaries
ll	Lower left corner of the domain
ur	Upper right corner of the domain

Definition at line 174 of file find_affected_cells.cpp.

Here is the caller graph for this function:
