diagnostics.hpp File Reference

Contains function that write simulation data to a file. More...

#include <iostream>
#include <fstream>
#include <string>
#include <cmath>
#include "hdsim2d.hpp"
#include "../../misc/utils.hpp"
#include "../../tessellation/ConvexHull.hpp"
#include "physical_geometry.hpp"

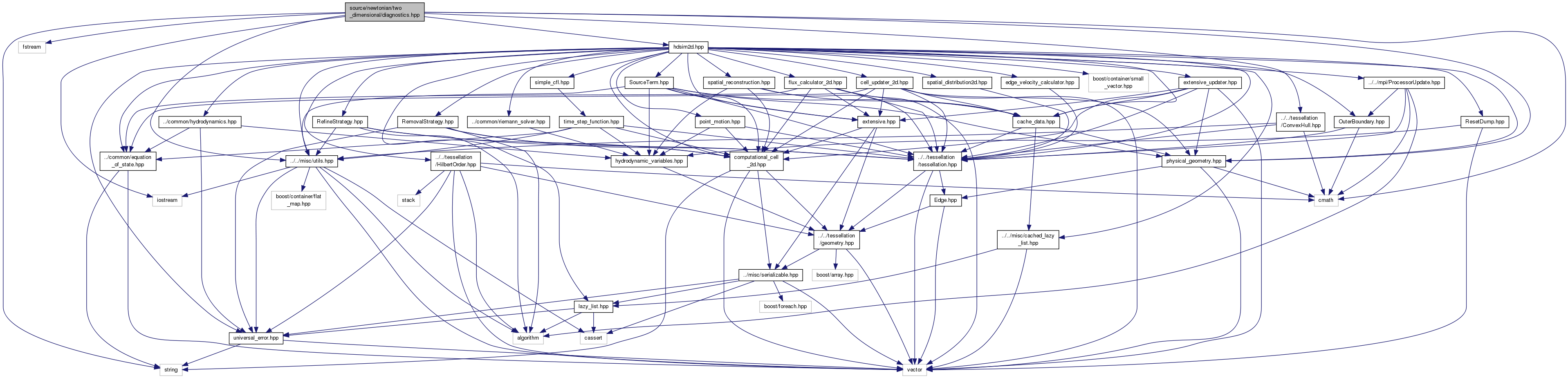

Include dependency graph for diagnostics.hpp:

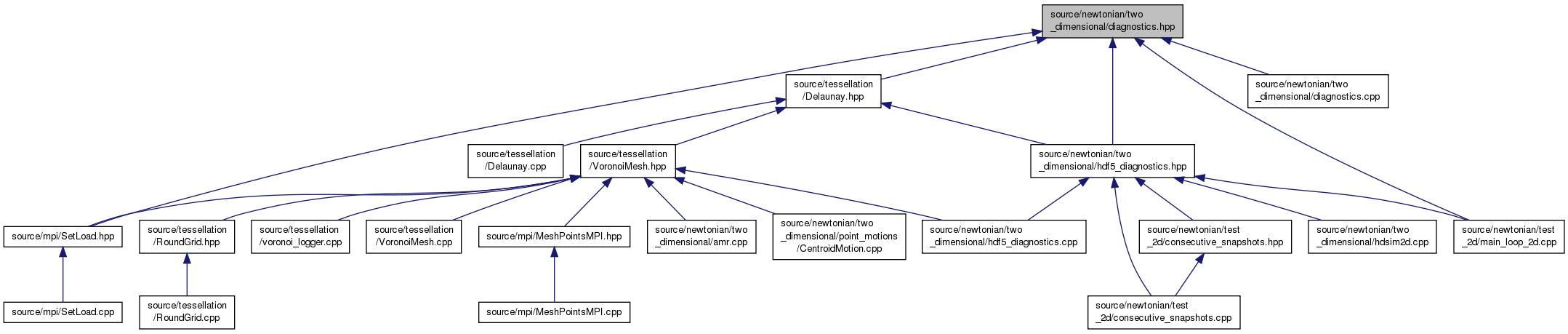

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	BinOutput (string location, hdsim const &sim, Tessellation const &V, bool floatprecision=true)
	Outputs the simulation data into a binary file (float precision) as follows: 1) Int - Number of cells=n 2) For each cell it's x and y coordinate (2 floats)*n 3) Pressure (n floats) 4) Density (n floats) 5) For each cell an int=N, stating the number of vertices and then the vertices(2*N floats) 6) The time - float 7) The number of cells with tracers - int 8) The number of tracers - int 9) The passive tracers written cell by cell (float) More...
Extensive	total_conserved (hdsim const &sim)
	Calculates the total extensive conserved variables of the entire computational domain. More...
double	total_tracer (const hdsim &sim, const int index)
	Calculates the total amount of tracer in computational domain. More...
void	DisplayError (UniversalError const &eo)
	Displays the UniversalError information. More...
void	write_error (const string &fname, const UniversalError &eo)
	Writes all the error information to a file. More...
void	WriteVector2DToFile (vector< Vector2D > const &vec, string filename)
	Writes a vector of Vector2D to a binary file. More...
vector< Vector2D >	ReadVector2DFromFile (string filename)
	Reads a vector of Vector2D from a binary file. More...

Detailed Description

Contains function that write simulation data to a file.

Author

Almog Yalinewich

Definition in file diagnostics.hpp.

Function Documentation

BinOutput()

void BinOutput	(	string	location,
		hdsim const &	sim,
		Tessellation const &	V,
		bool	floatprecision = true
	)

Outputs the simulation data into a binary file (float precision) as follows: 1) Int - Number of cells=n 2) For each cell it's x and y coordinate (2 floats)*n 3) Pressure (n floats) 4) Density (n floats) 5) For each cell an int=N, stating the number of vertices and then the vertices(2*N floats) 6) The time - float 7) The number of cells with tracers - int 8) The number of tracers - int 9) The passive tracers written cell by cell (float)

Parameters

location	The output file's location
sim	The hydro sim
V	The tessellation
floatprecision	A flag to choose output in float/double precision

DisplayError()

void DisplayError

(

UniversalError const &

eo

)

Displays the UniversalError information.

Parameters

eo	Th UniversalError

Definition at line 9 of file diagnostics.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

ReadVector2DFromFile()

vector<Vector2D> ReadVector2DFromFile

(

string

filename

)

Reads a vector of Vector2D from a binary file.

Returns

The vector that was read

Parameters

filename

The path to the output file

Definition at line 58 of file diagnostics.cpp.

total_conserved()

Extensive total_conserved

(

hdsim const &

sim

)

Calculates the total extensive conserved variables of the entire computational domain.

Parameters

sim	Hydrodynamic simulation

Returns

The total conserved of the simulation

Definition at line 52 of file diagnostics.cpp.

Here is the call graph for this function:

total_tracer()

double total_tracer	(	const hdsim &	sim,
		const int	index
	)

Calculates the total amount of tracer in computational domain.

Parameters

sim	Hydrodynamic simulation
index	Index of tracer

Returns

Total amount of certain tracer

write_error()

void write_error	(	const string &	fname,
		const UniversalError &	eo
	)

Writes all the error information to a file.

Parameters

fname	File name
eo	Error object

Definition at line 17 of file diagnostics.cpp.

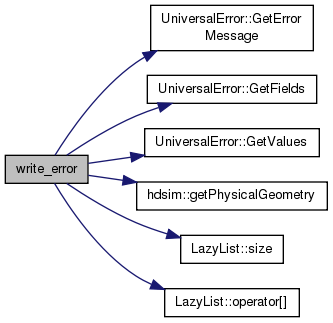

Here is the call graph for this function:

WriteVector2DToFile()

void WriteVector2DToFile	(	vector< Vector2D > const &	vec,
		string	filename
	)

Writes a vector of Vector2D to a binary file.

Parameters

vec	The vector to write
filename	The path to the output file

Definition at line 77 of file diagnostics.cpp.
