Voronoi tessellation class. More...

#include <VoronoiMesh.hpp>

Inheritance diagram for VoronoiMesh:

Collaboration diagram for VoronoiMesh:

Public Member Functions
Vector2D	CalcFaceVelocity (Vector2D wl, Vector2D wr, Vector2D rL, Vector2D rR, Vector2D f) const
	Calculates the velocity of a single edge. More...

VoronoiMesh *	clone (void) const
	Cloning function. More...

vector< int >	GetNeighbors (int index) const
	Returns the indeces of the neighbors. More...

void	GetNeighbors (int index, vector< int > &neigh) const
	Returns the indeces of the neighbors. More...

vector< int >	GetLiteralNeighbors (int index) const
	Returns the list of neighbors including ghost points. More...

int	GetOriginalIndex (int point) const
	Returns the original index of the duplicated point. More...

void	Initialise (vector< Vector2D > const &points, Tessellation const &vproc, OuterBoundary const *outer, bool reorder=true)
	Initialise the tessellation. More...

void	Initialise (vector< Vector2D > const &points, OuterBoundary const *bc, bool reorder=true)
	Initialises the tessellation. More...

	VoronoiMesh (void)
	Class default constructor.

	VoronoiMesh (vector< Vector2D > const &points, OuterBoundary const &bc, bool HOrder=true)
	Class constructor. More...

	VoronoiMesh (Tessellation const &proctess, vector< Vector2D > const &points, OuterBoundary const &bc, bool HOrder=true)
	Class constructor for MPI. More...

	VoronoiMesh (VoronoiMesh const &other)
	Copy constructor. More...

vector< int >	Update (const vector< Vector2D > &points, const Tessellation &vproc, bool reorder=false)
	Updates the tessellation. More...

vector< int >	Update (const vector< Vector2D > &points, bool reorder=false)
	Update the tessellation. More...

int	GetPointNo (void) const
	Get Total number of mesh generating points. More...

void	SetPointNo (int N)
	Set the number of points. More...

Vector2D	GetMeshPoint (int index) const
	Returns Position of mesh generating point. More...

int	GetTotalSidesNumber (void) const
	Returns the total number of faces. More...

Edge const &	GetEdge (int index) const
	Returns edge (interface between cells) More...

double	GetWidth (int index) const
	Returns the effective width of a cell. More...

double	GetVolume (int index) const
	Returns the volume of a cell. More...

vector< int > const &	GetCellEdges (int index) const
	Returns a reference to a vector<int> containing the indexes of the edges related to a cell. More...

Vector2D const &	GetCellCM (int index) const
	Returns Position of Cell's CM. More...

vector< Vector2D > &	GetMeshPoints (void)
	Returns a reference to the point vector. More...

void	output (string filename)
	Outputs the grid data. More...

bool	NearBoundary (int index) const
	Returns if the cell is adjacent to a boundary. More...

vector< Edge > &	GetAllEdges (void)
	Returns a reference to a list of all edges. More...

void	FindBoundaryRemoveSend (vector< int > const &ToRemove, vector< vector< int > > &BoundaryRemove, vector< vector< vector< int > > > &BoundaryNeigh)
	Calculates and send the ghost points that are needed for AMR with MPI. More...

vector< vector< int > > &	GetDuplicatedPoints (void)
	Returns the indeces of the points that where sent to other processors as ghost points. More...

vector< vector< int > > const &	GetDuplicatedPoints (void) const
	Returns the indeces of the points that where sent to other processors as ghost points. More...

vector< int >	GetDuplicatedProcs (void) const
	Returns the indeces of the processors with whom ghost points where exchanged. More...

vector< vector< int > > const &	GetSentPoints (void) const
	Returns the indeces of the points that where sent to other processors. More...

vector< int >	GetSentProcs (void) const
	Returns the indeces of the processors with whom points where exchanged. More...

vector< vector< int > > &	GetGhostIndeces (void)
	Returns the indeces of each ghost point in the vector of points that the tessellation holds. More...

vector< vector< int > > const &	GetGhostIndeces (void) const
	Returns the indeces of each ghost point in the vector of points that the tessellation holds. More...

vector< size_t >	GetSelfPoint (void) const
	Returns the indeces of the points that remain with the processor after the ne processor mesh is built. More...

int	GetTotalPointNumber (void) const
	Returns the total number of points (including ghost) More...

const vector< Edge > &	getAllEdges (void) const
	Returns reference to the list of all edges. More...

vector< Vector2D > &	GetAllCM (void)
	Returns the center of masses of the cells. More...

void	GetNeighborNeighbors (vector< int > &result, int point) const
	Retrieves vicarious neighbors. More...

vector< Vector2D >	UpdateMPIPoints (Tessellation const &vproc, int rank, vector< Vector2D > &points, OuterBoundary const *obc, vector< size_t > &selfindex, vector< int > &sentproc, vector< vector< int > > &sentpoints)
	Communicate position of mesh generating points between processes. More...

Public Attributes
voronoi_loggers::VoronoiLogger *	logger
	Diagnostics method.

Detailed Description

Voronoi tessellation class.

Definition at line 29 of file VoronoiMesh.hpp.

Constructor & Destructor Documentation

◆ VoronoiMesh() [1/3]

VoronoiMesh::VoronoiMesh	(	vector< Vector2D > const &	points,
		OuterBoundary const &	bc,
		bool	HOrder = `true`
	)

Class constructor.

Parameters

points	The points to build for
bc	The geometric boundary conditions
HOrder	Should the points be rearranged with Hilbert ordering

Definition at line 85 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ VoronoiMesh() [2/3]

VoronoiMesh::VoronoiMesh	(	Tessellation const &	proctess,
		vector< Vector2D > const &	points,
		OuterBoundary const &	bc,
		bool	HOrder = `true`
	)

Class constructor for MPI.

Parameters

points	The points to build for
proctess	The tessellation of the processors
bc	The geometric boundary conditions
HOrder	Should the points be rearranged with Hilbert ordering

Definition at line 109 of file VoronoiMesh.cpp.

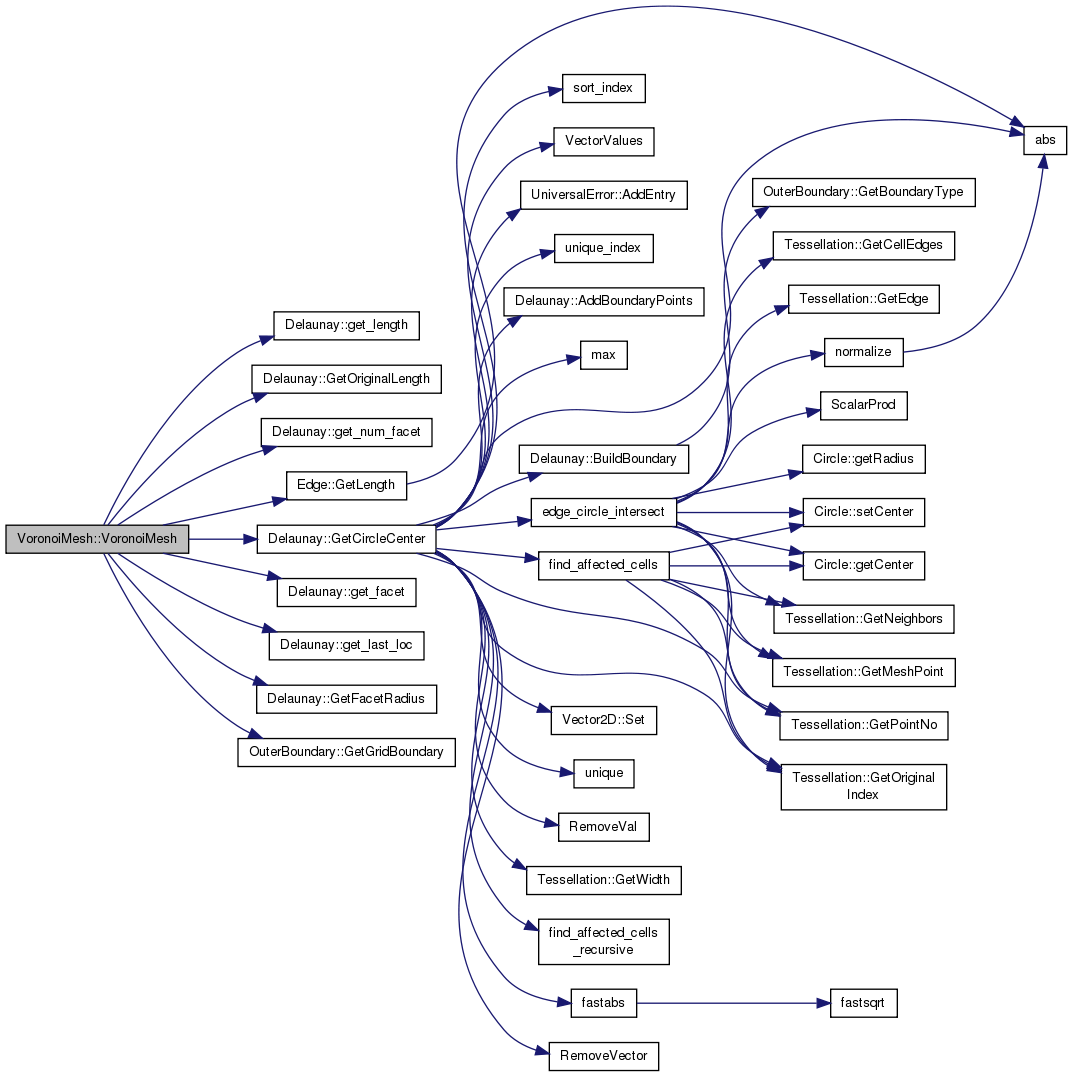

Here is the call graph for this function:

◆ VoronoiMesh() [3/3]

VoronoiMesh::VoronoiMesh ( VoronoiMesh const & other )

Copy constructor.

Parameters

other The Voronoi to copy

Definition at line 205 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ CalcFaceVelocity()

Vector2D VoronoiMesh::CalcFaceVelocity	(	Vector2D	wl,
		Vector2D	wr,
		Vector2D	rL,
		Vector2D	rR,
		Vector2D	f
	)		const

virtual

Calculates the velocity of a single edge.

Parameters

wl	The velocity of the left mesh point
wr	The velocity of the right mesh point
rL	The location of the left mesh point
rR	The location of the right mesh point
f	The centroid of the edge

Returns: The edge's velocity

Implements Tessellation.

Definition at line 150 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ clone()

VoronoiMesh * VoronoiMesh::clone ( void ) const

virtual

Cloning function.

Returns: Pointer to clone

Implements Tessellation.

Definition at line 632 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ FindBoundaryRemoveSend()

void VoronoiMesh::FindBoundaryRemoveSend	(	vector< int > const &	ToRemove,
		vector< vector< int > > &	BoundaryRemove,
		vector< vector< vector< int > > > &	BoundaryNeigh
	)

Calculates and send the ghost points that are needed for AMR with MPI.

Parameters

ToRemove	The local list of points to remove
BoundaryRemove	The list of points that are border points per proc that are removed
BoundaryNeigh	The indeces in the Nghost list for each neighbor of the points in BoundaryRemove

◆ GetAllCM()

vector< Vector2D > & VoronoiMesh::GetAllCM ( void )

virtual

Returns the center of masses of the cells.

Returns: The CM's

Implements Tessellation.

Definition at line 673 of file VoronoiMesh.cpp.

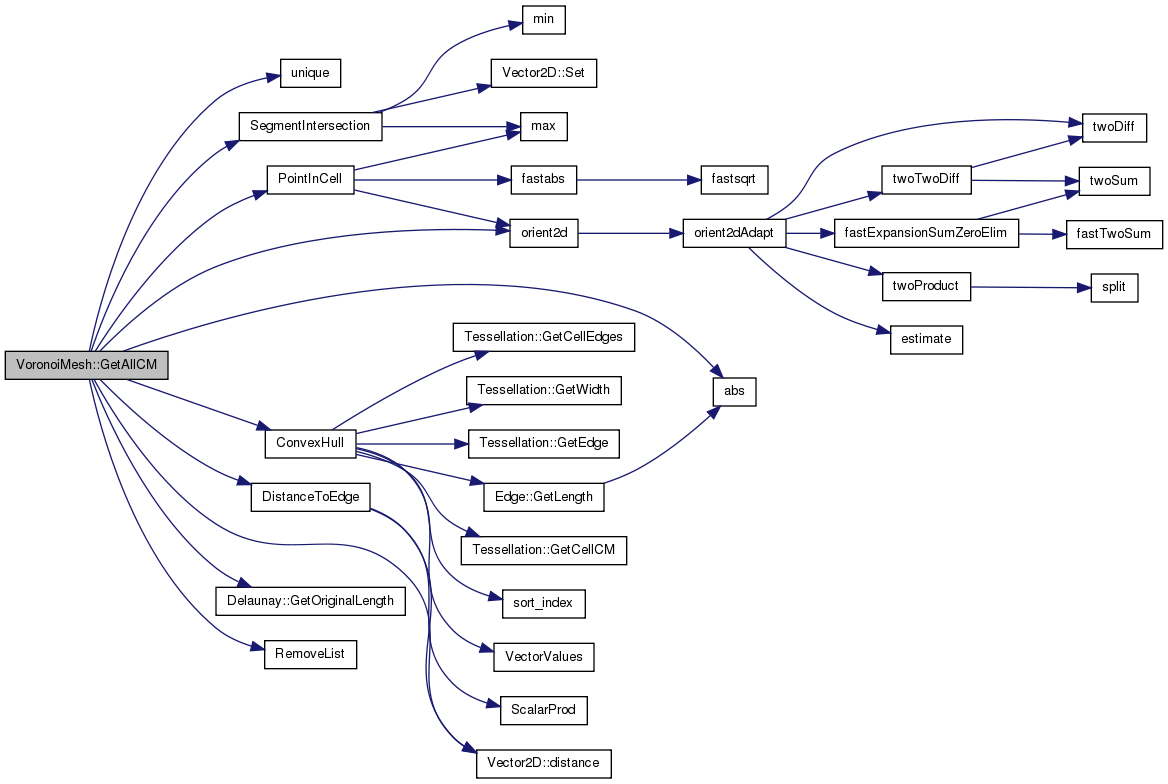

Here is the call graph for this function:

◆ GetAllEdges()

vector< Edge > & VoronoiMesh::GetAllEdges ( void )

Returns a reference to a list of all edges.

Returns: List of all edges

Definition at line 1168 of file VoronoiMesh.cpp.

◆ getAllEdges()

const vector< Edge > & VoronoiMesh::getAllEdges ( void ) const

virtual

Returns reference to the list of all edges.

Returns: Reference to the list of all edges

Implements Tessellation.

Definition at line 658 of file VoronoiMesh.cpp.

◆ GetCellCM()

Vector2D const & VoronoiMesh::GetCellCM ( int index ) const

virtual

Returns Position of Cell's CM.

Parameters

index Mesh generating point index (the cell's index)

Returns: Position of CM

Implements Tessellation.

Definition at line 668 of file VoronoiMesh.cpp.

◆ GetCellEdges()

vector< int > const & VoronoiMesh::GetCellEdges ( int index ) const

virtual

Returns a reference to a vector<int> containing the indexes of the edges related to a cell.

Parameters

index The index of the cell.

Returns: The reference to vector<int>

Implements Tessellation.

Definition at line 447 of file VoronoiMesh.cpp.

Here is the caller graph for this function:

◆ GetDuplicatedPoints() [1/2]

vector< vector< int > > & VoronoiMesh::GetDuplicatedPoints ( void )

virtual

Returns the indeces of the points that where sent to other processors as ghost points.

Returns: The sent points

Implements Tessellation.

Definition at line 1173 of file VoronoiMesh.cpp.

◆ GetDuplicatedPoints() [2/2]

vector< vector< int > > const & VoronoiMesh::GetDuplicatedPoints ( void ) const

virtual

Returns the indeces of the points that where sent to other processors as ghost points.

Returns: The sent points

Implements Tessellation.

Definition at line 1178 of file VoronoiMesh.cpp.

◆ GetDuplicatedProcs()

vector< int > VoronoiMesh::GetDuplicatedProcs ( void ) const

virtual

Returns the indeces of the processors with whom ghost points where exchanged.

Returns: The list of processors

Implements Tessellation.

Definition at line 1198 of file VoronoiMesh.cpp.

◆ GetEdge()

Edge const & VoronoiMesh::GetEdge ( int index ) const

virtual

Returns edge (interface between cells)

Parameters

index Face index

Returns: Interface between cells

Implements Tessellation.

Definition at line 663 of file VoronoiMesh.cpp.

Here is the caller graph for this function:

◆ GetGhostIndeces() [1/2]

vector< vector< int > > & VoronoiMesh::GetGhostIndeces ( void )

virtual

Returns the indeces of each ghost point in the vector of points that the tessellation holds.

Returns: The indeces where the outer index is the index of the sent processor

Implements Tessellation.

Definition at line 1183 of file VoronoiMesh.cpp.

◆ GetGhostIndeces() [2/2]

vector< vector< int > > const & VoronoiMesh::GetGhostIndeces ( void ) const

virtual

Returns the indeces of each ghost point in the vector of points that the tessellation holds.

Returns: The indeces where the outer index is the index of the sent processor

Implements Tessellation.

Definition at line 1188 of file VoronoiMesh.cpp.

◆ GetLiteralNeighbors()

vector< int > VoronoiMesh::GetLiteralNeighbors ( int index ) const

Returns the list of neighbors including ghost points.

Returns: The neighbors

Parameters

index The cell whose neighbors are returned

Definition at line 609 of file VoronoiMesh.cpp.

◆ GetMeshPoint()

Vector2D VoronoiMesh::GetMeshPoint ( int index ) const

virtual

Returns Position of mesh generating point.

Parameters

index Mesh generating point index

Returns: Position of mesh generating point

Implements Tessellation.

Definition at line 648 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMeshPoints()

vector< Vector2D > & VoronoiMesh::GetMeshPoints ( void )

virtual

Returns a reference to the point vector.

Returns: The reference

Implements Tessellation.

Definition at line 485 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ GetNeighborNeighbors()

void VoronoiMesh::GetNeighborNeighbors	(	vector< int > &	result,
		int	point
	)		const

virtual

Retrieves vicarious neighbors.

Parameters

result	Output
point	Mesh generating point index

Implements Tessellation.

Definition at line 925 of file VoronoiMesh.cpp.

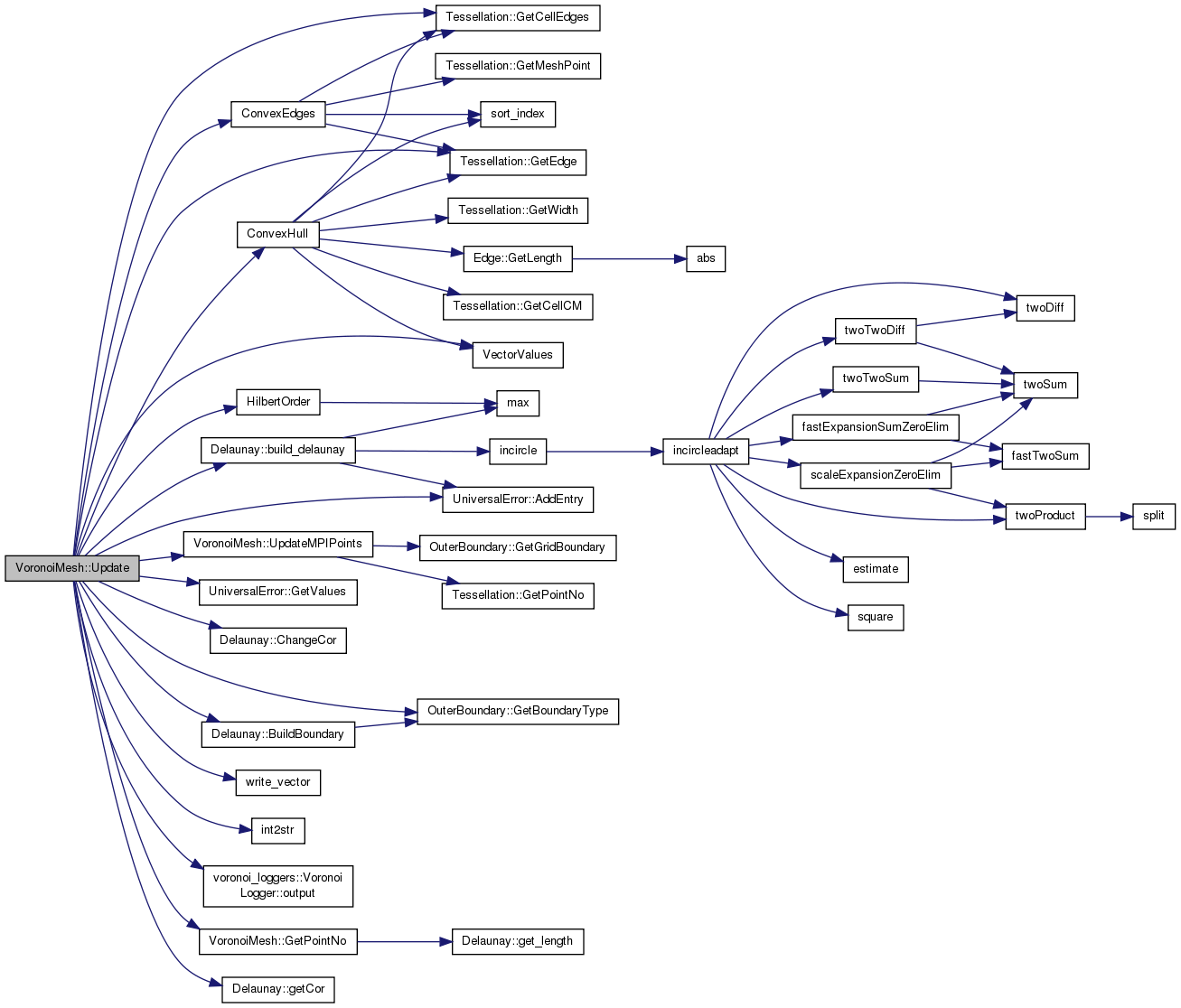

Here is the call graph for this function:

◆ GetNeighbors() [1/2]

vector< int > VoronoiMesh::GetNeighbors ( int index ) const

virtual

Returns the indeces of the neighbors.

Parameters

index The cell to check

Returns: The neighbors

Implements Tessellation.

Definition at line 588 of file VoronoiMesh.cpp.

Here is the caller graph for this function:

◆ GetNeighbors() [2/2]

void VoronoiMesh::GetNeighbors	(	int	index,
		vector< int > &	neigh
	)		const

virtual

Returns the indeces of the neighbors.

Parameters

index	The cell to check
neigh	the indeces of the neighbors given as output

Implements Tessellation.

Definition at line 598 of file VoronoiMesh.cpp.

◆ GetOriginalIndex()

int VoronoiMesh::GetOriginalIndex ( int point ) const

virtual

Returns the original index of the duplicated point.

Parameters

point The index of the duplicated point

Returns: The original point index

Reimplemented from Tessellation.

Definition at line 173 of file VoronoiMesh.cpp.

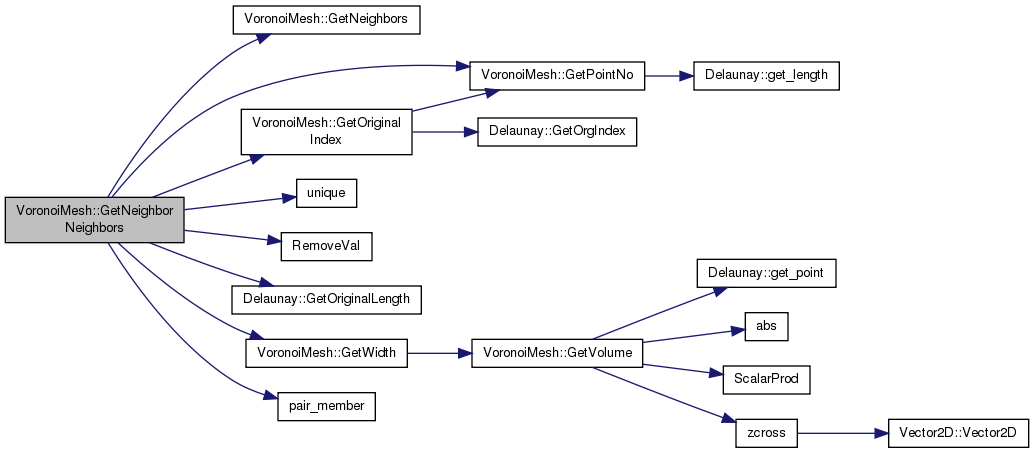

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPointNo()

int VoronoiMesh::GetPointNo ( void ) const

virtual

Get Total number of mesh generating points.

Returns: Number of mesh generating points

Implements Tessellation.

Definition at line 637 of file VoronoiMesh.cpp.

Here is the call graph for this function:

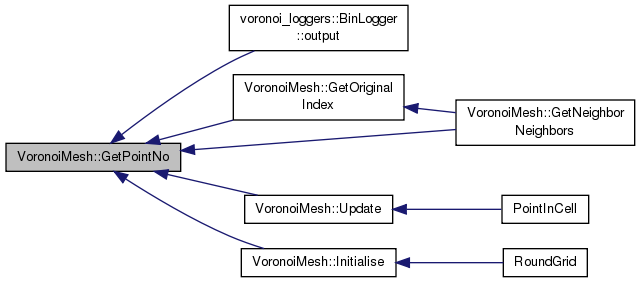

Here is the caller graph for this function:

◆ GetSelfPoint()

vector< size_t > VoronoiMesh::GetSelfPoint ( void ) const

virtual

Returns the indeces of the points that remain with the processor after the ne processor mesh is built.

Returns: The indeces of the points

Implements Tessellation.

Definition at line 182 of file VoronoiMesh.cpp.

◆ GetSentPoints()

vector< vector< int > > const & VoronoiMesh::GetSentPoints ( void ) const

virtual

Returns the indeces of the points that where sent to other processors.

Returns: The sent points

Implements Tessellation.

Definition at line 1208 of file VoronoiMesh.cpp.

◆ GetSentProcs()

vector< int > VoronoiMesh::GetSentProcs ( void ) const

virtual

Returns the indeces of the processors with whom points where exchanged.

Returns: The list of processors

Implements Tessellation.

Definition at line 1203 of file VoronoiMesh.cpp.

◆ GetTotalPointNumber()

int VoronoiMesh::GetTotalPointNumber ( void ) const

virtual

Returns the total number of points (including ghost)

Returns: The total number of points

Implements Tessellation.

Definition at line 1193 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ GetTotalSidesNumber()

int VoronoiMesh::GetTotalSidesNumber ( void ) const

virtual

Returns the total number of faces.

Returns: Total number of faces

Implements Tessellation.

Definition at line 653 of file VoronoiMesh.cpp.

Here is the caller graph for this function:

◆ GetVolume()

double VoronoiMesh::GetVolume ( int index ) const

virtual

Returns the volume of a cell.

Parameters

index Cell index

Returns: Cell volume

Implements Tessellation.

Definition at line 452 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetWidth()

double VoronoiMesh::GetWidth ( int index ) const

virtual

Returns the effective width of a cell.

Parameters

index Cell index

Returns: Effective cell width

Implements Tessellation.

Definition at line 442 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialise() [1/2]

void VoronoiMesh::Initialise	(	vector< Vector2D > const &	points,
		Tessellation const &	vproc,
		OuterBoundary const *	outer,
		bool	reorder = `true`
	)

virtual

Initialise the tessellation.

Parameters

points	List of mesh generating points
vproc	Tessellation of processors
outer	Outer boundary condition
reorder	Determines whether to apply Hilbert order

Implements Tessellation.

Definition at line 1404 of file VoronoiMesh.cpp.

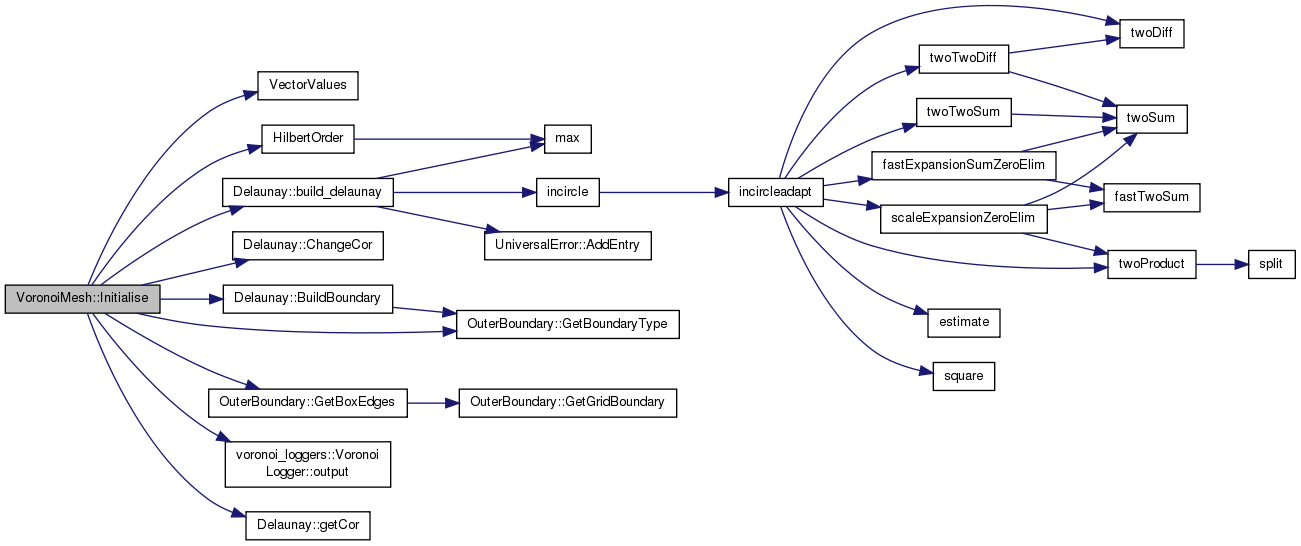

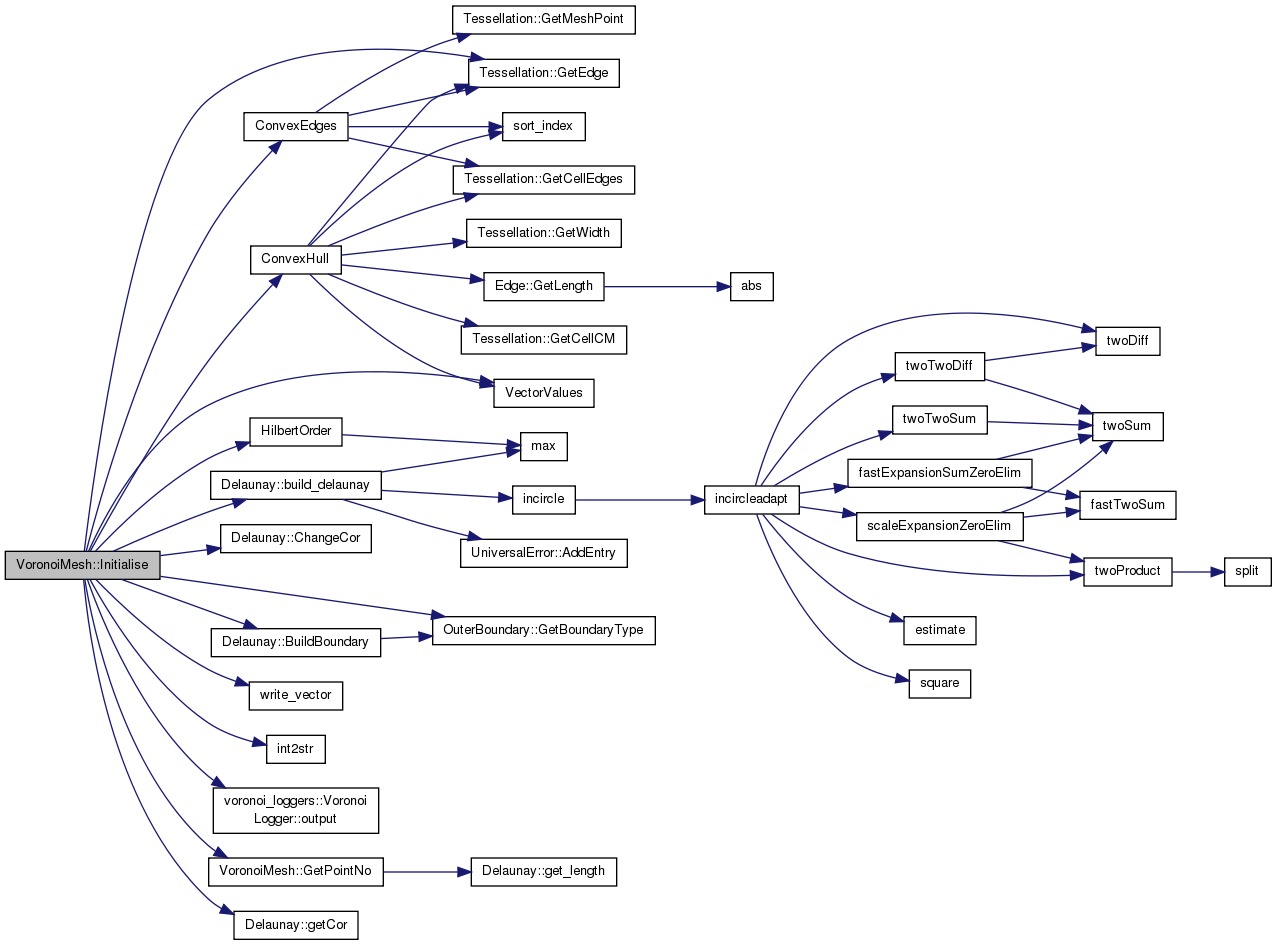

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialise() [2/2]

void VoronoiMesh::Initialise	(	vector< Vector2D > const &	points,
		OuterBoundary const *	bc,
		bool	HilbertOrder = `true`
	)

virtual

Initialises the tessellation.

Parameters

points	Initial position of mesh generating points
bc	Boundary conditions of the computational domain
HilbertOrder	Should the points be rearranged before insertion

Implements Tessellation.

Definition at line 312 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ NearBoundary()

bool VoronoiMesh::NearBoundary ( int index ) const

virtual

Returns if the cell is adjacent to a boundary.

Parameters

index The cell to check

Returns: If near boundary

Implements Tessellation.

Definition at line 157 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ output()

void VoronoiMesh::output ( string filename )

Outputs the grid data.

Parameters

filename The path to the output file

◆ SetPointNo()

void VoronoiMesh::SetPointNo ( int N )

Set the number of points.

Parameters

N	Number of points

Definition at line 642 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ Update() [1/2]

vector< int > VoronoiMesh::Update	(	const vector< Vector2D > &	points,
		const Tessellation &	vproc,
		bool	reorder = `false`
	)

virtual

Updates the tessellation.

Parameters

points	List of points
vproc	Tessellation of processors
reorder	Whether to apply hilbert order

Returns: List of hilbert order indices

Implements Tessellation.

Definition at line 1267 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Update() [2/2]

vector< int > VoronoiMesh::Update	(	const vector< Vector2D > &	points,
		bool	HilbertOrder = `false`
	)

virtual

Update the tessellation.

Parameters

points	The new positions of the mesh generating points
HilbertOrder	Should the points be rearranged before insertion

Returns: The indeces of sort (if done, else empty)

Implements Tessellation.

Definition at line 490 of file VoronoiMesh.cpp.

Here is the call graph for this function:

◆ UpdateMPIPoints()

vector< Vector2D > VoronoiMesh::UpdateMPIPoints	(	Tessellation const &	vproc,
		int	rank,
		vector< Vector2D > &	points,
		OuterBoundary const *	obc,
		vector< size_t > &	selfindex,
		vector< int > &	sentproc,
		vector< vector< int > > &	sentpoints
	)

Communicate position of mesh generating points between processes.

Parameters

vproc	Meta tessellation
rank	Current process rank
points	List of mesh generating points
obc	Outer boundary conditions
selfindex	Local indices
sentproc	Processes to which points should be sentpoints
sentpoints	Points to be sent

Returns: Received points

Definition at line 1540 of file VoronoiMesh.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

source/tessellation/VoronoiMesh.hpp
source/tessellation/VoronoiMesh.cpp

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VoronoiMesh() [1/3]

◆ VoronoiMesh() [2/3]

◆ VoronoiMesh() [3/3]

Member Function Documentation

◆ CalcFaceVelocity()

◆ clone()

◆ FindBoundaryRemoveSend()

◆ GetAllCM()

◆ GetAllEdges()

◆ getAllEdges()

◆ GetCellCM()

◆ GetCellEdges()

◆ GetDuplicatedPoints() [1/2]

◆ GetDuplicatedPoints() [2/2]

◆ GetDuplicatedProcs()

◆ GetEdge()

◆ GetGhostIndeces() [1/2]

◆ GetGhostIndeces() [2/2]

◆ GetLiteralNeighbors()

◆ GetMeshPoint()

◆ GetMeshPoints()

◆ GetNeighborNeighbors()

◆ GetNeighbors() [1/2]

◆ GetNeighbors() [2/2]

◆ GetOriginalIndex()

◆ GetPointNo()

◆ GetSelfPoint()

◆ GetSentPoints()

◆ GetSentProcs()

◆ GetTotalPointNumber()

◆ GetTotalSidesNumber()

◆ GetVolume()

◆ GetWidth()

◆ Initialise() [1/2]

◆ Initialise() [2/2]

◆ NearBoundary()

◆ output()

◆ SetPointNo()

◆ Update() [1/2]

◆ Update() [2/2]

◆ UpdateMPIPoints()
