The Delaunay data structure. Gets a set of points and constructs the Delaunay tessellation. More...

#include <Delaunay.hpp>

Collaboration diagram for Delaunay:

Public Member Functions
int	GetOrgIndex (int index) const
	Retrieves the original index of a point (in case a point was duplicated) More...

void	ChangeOlength (int n)
	Changes the cor olength. More...

void	Changelength (int n)
	Changes the cor length. More...

vector< Vector2D > &	ChangeCor (void)
	Allows to change the cor. More...

const vector< Vector2D > &	getCor (void) const
	Access to coordinates. More...

	Delaunay (void)
	Class constructor.

	Delaunay (Delaunay const &other)
	Copy constructor. More...

	~Delaunay (void)
	Default destructor.

void	build_delaunay (vector< Vector2D >const &vp, std::vector< std::pair< Vector2D, Vector2D > >const &cpoints)
	Builds the Delaunay tessellation. More...

void	output (void)
	Dumps the Delaunay tessellation into a binary file.

const facet &	get_facet (int index) const
	Returns a facet. More...

double	get_facet_coordinate (int Facet, int vertice, int dim)
	Returns a coordinate of a vertice. More...

Vector2D	get_point (size_t index) const
	Returns a point. More...

double	get_cor (int index, int dim) const
	Returns a coordinate. More...

int	get_num_facet (void) const
	Returns the number of facets. More...

int	get_length (void) const
	Returns the number of points. More...

int	get_last_loc (void) const
	Returns the last location, a number used to identify the fact that the neighbor of a facet is empty. More...

void	set_point (int index, Vector2D p)
	Change Mesh point. More...

double	triangle_area (int index)
	Returns the area of the triangle. Negative result means the triangle isn't right handed. More...

void	update (const vector< Vector2D > &points, std::vector< std::pair< Vector2D, Vector2D > >const &cpoints)
	Updates the triangulation. More...

int	GetOriginalIndex (int NewPoint) const
	Returns the original index of the duplicated point in Periodic Boundary conditions. More...

int	GetOriginalLength (void) const
	Returns the original length of the points (without duplicated points) More...

vector< Vector2D > &	GetMeshPoints (void)
	Returns a refrence to the points. More...

int	GetTotalLength (void)
	Returns the length of all the points (included duplicated) More...

double	GetFacetRadius (int facet) const
	return the facet's radius More...

void	AddAditionalPoint (Vector2D const &vec)
	Adds a point to the cor vector. Used in periodic boundaries with AMR. More...

int	GetCorSize (void) const
	Gets the size of the cor vector. More...

Vector2D	GetCircleCenter (int index, double &R) const
	Returns the center of the circumscribed circle of a facet. More...

void	BuildBoundary (OuterBoundary const *obc, vector< Edge > const &edges)
	Builds the boundary points. More...

pair< vector< vector< int > >, vector< int > >	BuildBoundary (OuterBoundary const *obc, Tessellation const &tproc, vector< vector< int > > &Nghost)
	Builds the boundary points for parallel runs. More...

void	AddBoundaryPoints (vector< Vector2D > const &points)
	Adds the points to the tessellation, used for boundary points. More...

bool	CheckCorrect (void)

Public Attributes
delaunay_loggers::DelaunayLogger *	logger
	Diagnostics.

Detailed Description

The Delaunay data structure. Gets a set of points and constructs the Delaunay tessellation.

Author: Elad Steinberg

Definition at line 30 of file Delaunay.hpp.

Constructor & Destructor Documentation

◆ Delaunay()

Delaunay::Delaunay ( Delaunay const & other )

Copy constructor.

Parameters

other The Triangulation to copy

Definition at line 161 of file Delaunay.cpp.

Member Function Documentation

◆ AddAditionalPoint()

void Delaunay::AddAditionalPoint ( Vector2D const & vec )

Adds a point to the cor vector. Used in periodic boundaries with AMR.

Parameters

vec	The point to add.

Definition at line 767 of file Delaunay.cpp.

◆ AddBoundaryPoints()

void Delaunay::AddBoundaryPoints ( vector< Vector2D > const & points )

Adds the points to the tessellation, used for boundary points.

Parameters

points The points to add

Definition at line 754 of file Delaunay.cpp.

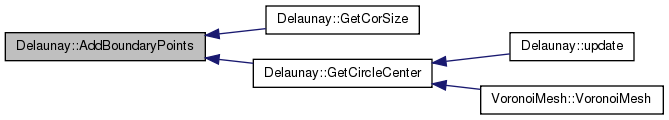

Here is the caller graph for this function:

◆ build_delaunay()

void Delaunay::build_delaunay	(	vector< Vector2D >const &	vp,
		std::vector< std::pair< Vector2D, Vector2D > >const &	cpoints
	)

Builds the Delaunay tessellation.

Parameters

vp	A refrence to a vector of points to be added.
cpoints	The edges of the processor cell.

Definition at line 376 of file Delaunay.cpp.

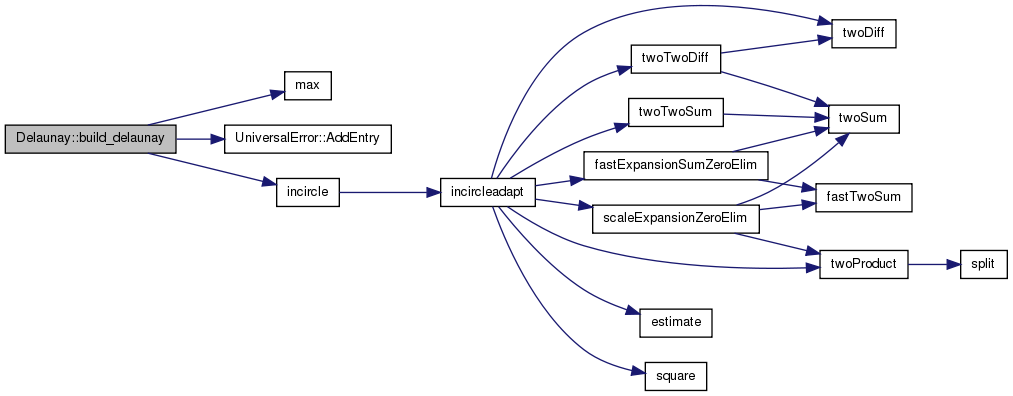

Here is the call graph for this function:

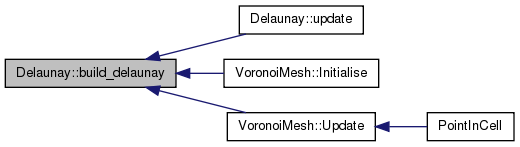

Here is the caller graph for this function:

◆ BuildBoundary() [1/2]

void Delaunay::BuildBoundary	(	OuterBoundary const *	obc,
		vector< Edge > const &	edges
	)

Builds the boundary points.

Parameters

obc	The geometrical boundary conditions
edges	The edges of the domain returns the indeces of the boundary points for each edge, can be larger than the number of edges since it include corners at the end

Definition at line 1167 of file Delaunay.cpp.

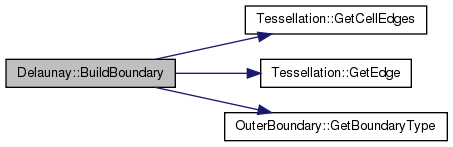

Here is the call graph for this function:

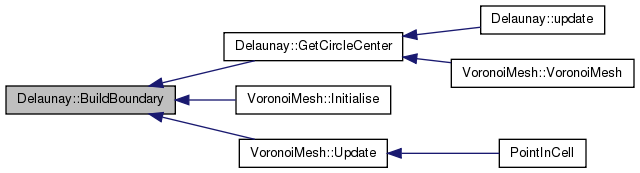

Here is the caller graph for this function:

◆ BuildBoundary() [2/2]

std::pair< vector< vector< int > >, vector< int > > Delaunay::BuildBoundary	(	OuterBoundary const *	obc,
		Tessellation const &	tproc,
		vector< vector< int > > &	Nghost
	)

Builds the boundary points for parallel runs.

Parameters

obc	The geometrical boundary conditions
tproc	The tessellation of the processors
Nghost	The indeces of the ghost cells (order by cpu) in the cor vector. Given as output.

Returns: The indeces of the boundary points sent to each cpu and the list of cpus to talk with.

Definition at line 1919 of file Delaunay.cpp.

Here is the call graph for this function:

◆ ChangeCor()

vector< Vector2D > & Delaunay::ChangeCor ( void )

Allows to change the cor.

Returns: Refrence to the cor vector

Definition at line 681 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ Changelength()

void Delaunay::Changelength ( int n )

Changes the cor length.

Parameters

n	The new length

Definition at line 676 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ ChangeOlength()

void Delaunay::ChangeOlength ( int n )

Changes the cor olength.

Parameters

n	The new length;

Definition at line 671 of file Delaunay.cpp.

◆ get_cor()

double Delaunay::get_cor	(	int	index,
		int	dim
	)		const

Returns a coordinate.

Parameters

index	The index of the point.
dim	If dim=0 returns the x-coordinate else returns the y-coordinate.

Returns: The chosen coordinate.

Definition at line 709 of file Delaunay.cpp.

◆ get_facet()

const facet & Delaunay::get_facet ( int index ) const

Returns a facet.

Parameters

index Facet index

Returns: A reference to the selected facet.

Definition at line 691 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ get_facet_coordinate()

double Delaunay::get_facet_coordinate	(	int	Facet,
		int	vertice,
		int	dim
	)

Returns a coordinate of a vertice.

Parameters

Facet	The index of the facet to check.
vertice	The index of the vertice in the facet.
dim	If dim=0 returns the x-coordinate else returns the y-coordinate.

Returns: The chosen coordinate.

Definition at line 696 of file Delaunay.cpp.

◆ get_last_loc()

int Delaunay::get_last_loc ( void ) const

Returns the last location, a number used to identify the fact that the neighbor of a facet is empty.

Returns: The last location.

Definition at line 729 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ get_length()

int Delaunay::get_length ( void ) const

Returns the number of points.

Returns: The number of points.

Definition at line 724 of file Delaunay.cpp.

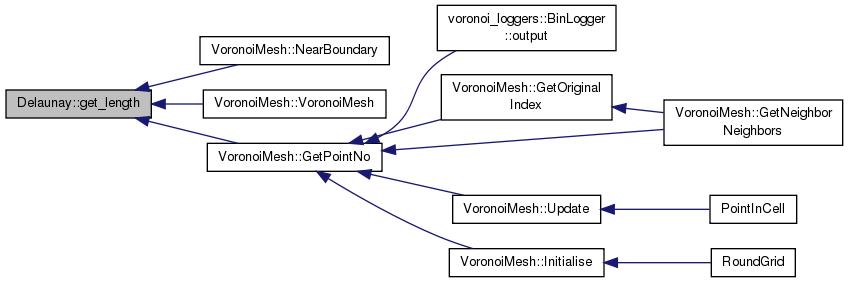

Here is the caller graph for this function:

◆ get_num_facet()

int Delaunay::get_num_facet ( void ) const

Returns the number of facets.

Returns: The number of facets.

Definition at line 719 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ get_point()

Vector2D Delaunay::get_point ( size_t index ) const

Returns a point.

Parameters

index The index of the point.

Returns: The chosen point.

Definition at line 704 of file Delaunay.cpp.

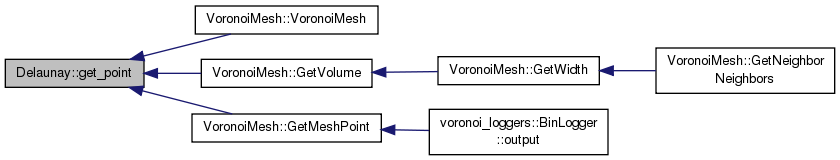

Here is the caller graph for this function:

◆ GetCircleCenter()

Vector2D Delaunay::GetCircleCenter	(	int	index,
		double &	R
	)		const

Returns the center of the circumscribed circle of a facet.

Parameters

index	The index of the facet
R	The radius given as output

Returns: The circumscribed circle's center

Definition at line 1202 of file Delaunay.cpp.

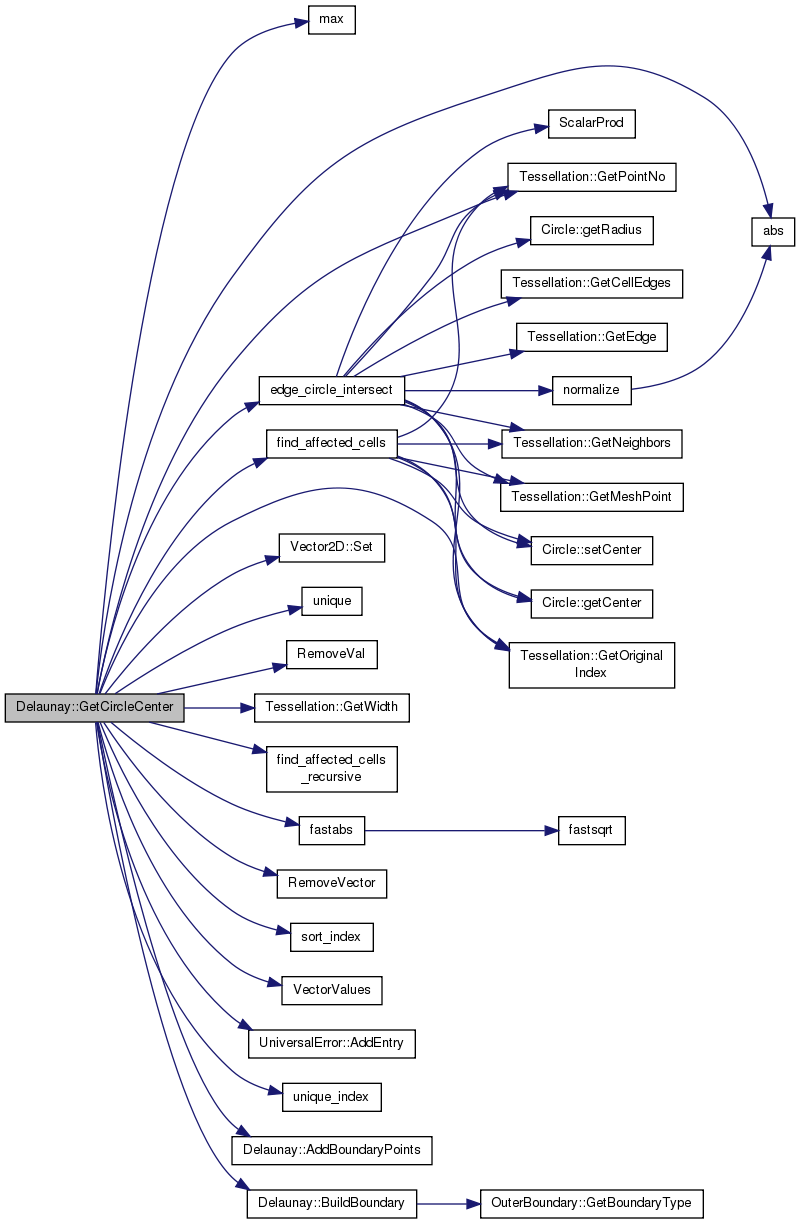

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCor()

const vector< Vector2D > & Delaunay::getCor ( void ) const

Access to coordinates.

Returns: Reference to coordinates vector

Definition at line 686 of file Delaunay.cpp.

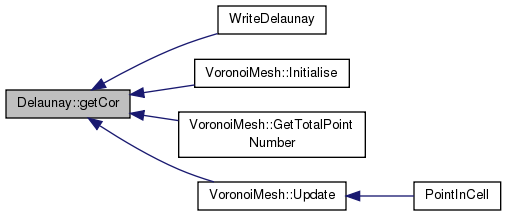

Here is the caller graph for this function:

◆ GetCorSize()

int Delaunay::GetCorSize ( void ) const

Gets the size of the cor vector.

Returns: The size of the cor vector.

Definition at line 772 of file Delaunay.cpp.

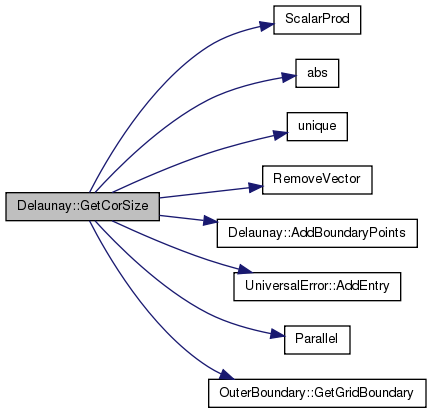

Here is the call graph for this function:

◆ GetFacetRadius()

double Delaunay::GetFacetRadius ( int facet ) const

return the facet's radius

Parameters

facet The facet to check

Returns: The facet's radius

Definition at line 666 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ GetMeshPoints()

vector< Vector2D > & Delaunay::GetMeshPoints ( void )

Returns a refrence to the points.

Returns: Refrence to the points

Definition at line 744 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ GetOrgIndex()

int Delaunay::GetOrgIndex ( int index ) const

Retrieves the original index of a point (in case a point was duplicated)

Parameters

index Index of a point

Returns: Original index

Definition at line 1963 of file Delaunay.cpp.

Here is the caller graph for this function:

◆ GetOriginalIndex()

int Delaunay::GetOriginalIndex ( int NewPoint ) const

Returns the original index of the duplicated point in Periodic Boundary conditions.

Parameters

NewPoint The index of the duplicated point

Returns: The original index

Definition at line 661 of file Delaunay.cpp.

◆ GetOriginalLength()

int Delaunay::GetOriginalLength ( void ) const

Returns the original length of the points (without duplicated points)

Returns: The original length

Definition at line 739 of file Delaunay.cpp.

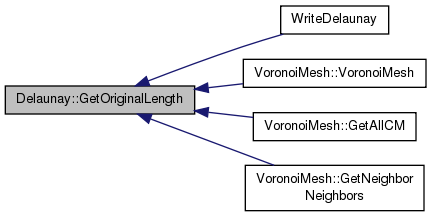

Here is the caller graph for this function:

◆ GetTotalLength()

int Delaunay::GetTotalLength ( void )

Returns the length of all the points (included duplicated)

Returns: The length of all of the points

Definition at line 749 of file Delaunay.cpp.

◆ set_point()

void Delaunay::set_point	(	int	index,
		Vector2D	p
	)

Change Mesh point.

Parameters

index	The index of the point to change.
p	The new point to set.

Definition at line 734 of file Delaunay.cpp.

◆ triangle_area()

double Delaunay::triangle_area ( int index )

Returns the area of the triangle. Negative result means the triangle isn't right handed.

Parameters

index The index to the facet

Returns: The area

Definition at line 491 of file Delaunay.cpp.

◆ update()

void Delaunay::update	(	const vector< Vector2D > &	points,
		std::vector< std::pair< Vector2D, Vector2D > >const &	cpoints
	)

Updates the triangulation.

Parameters

points	The new set of points
cpoints	The points of the processor cell

Definition at line 504 of file Delaunay.cpp.

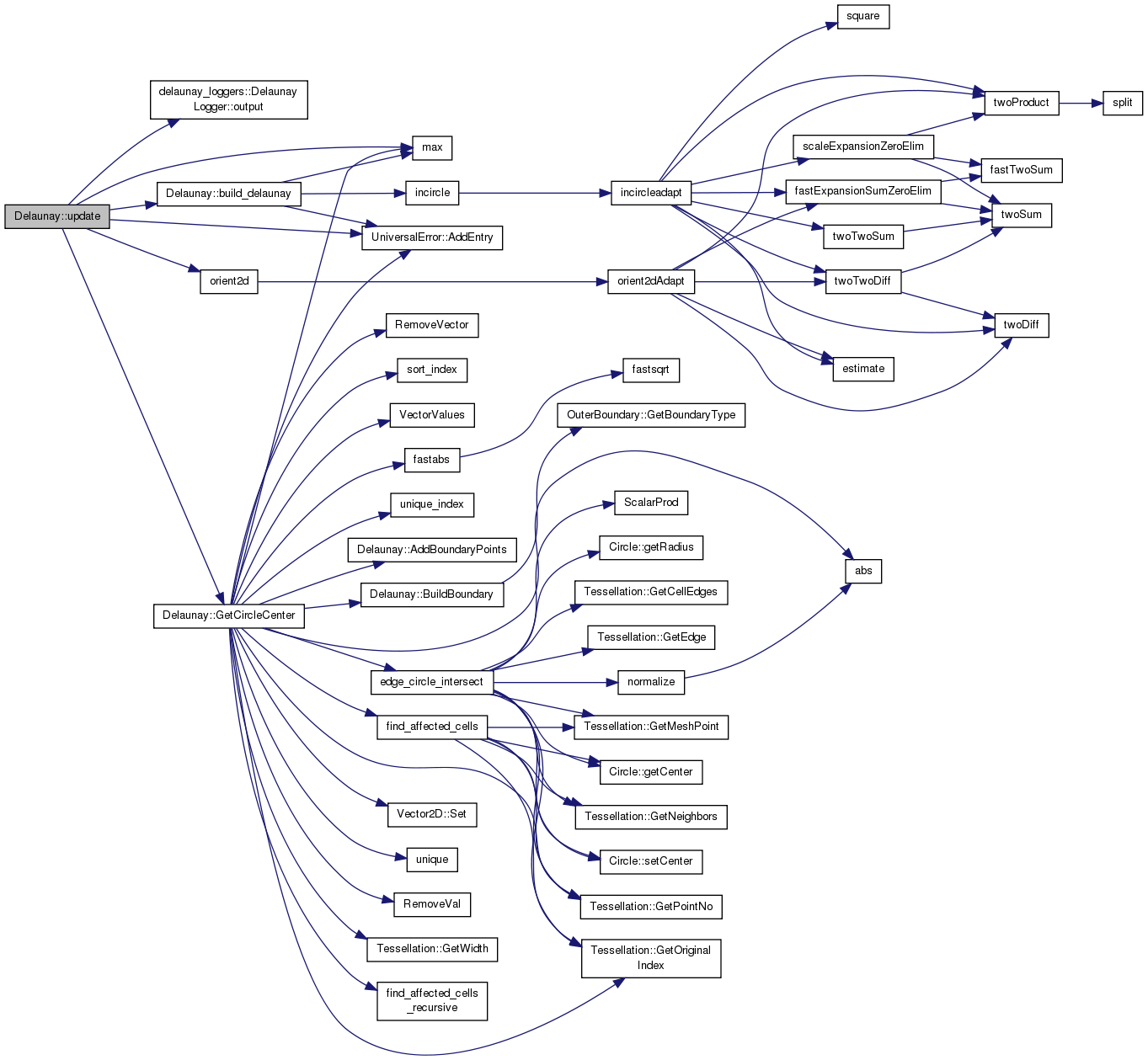

Here is the call graph for this function:

The documentation for this class was generated from the following files:

source/tessellation/Delaunay.hpp
source/tessellation/Delaunay.cpp

Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Delaunay()

Member Function Documentation

◆ AddAditionalPoint()

◆ AddBoundaryPoints()

◆ build_delaunay()

◆ BuildBoundary() [1/2]

◆ BuildBoundary() [2/2]

◆ ChangeCor()

◆ Changelength()

◆ ChangeOlength()

◆ get_cor()

◆ get_facet()

◆ get_facet_coordinate()

◆ get_last_loc()

◆ get_length()

◆ get_num_facet()

◆ get_point()

◆ GetCircleCenter()

◆ getCor()

◆ GetCorSize()

◆ GetFacetRadius()

◆ GetMeshPoints()

◆ GetOrgIndex()

◆ GetOriginalIndex()

◆ GetOriginalLength()

◆ GetTotalLength()

◆ set_point()

◆ triangle_area()

◆ update()
