Abstract class for custom motion of mesh generating points. More...

Inheritance diagram for CustomMotion:

Collaboration diagram for CustomMotion:

Public Member Functions
	CustomMotion (PointMotion const &otherpm, CustomMotionCriteria const &criteria)
	Class constructor. More...

vector< Vector2D >	operator() (const Tessellation &tess, const vector< ComputationalCell > &cells, double time, TracerStickerNames const &tracerstickernames) const
	Calculates the velocity of all mesh points. More...

vector< Vector2D >	ApplyFix (Tessellation const &tess, vector< ComputationalCell > const &cells, double time, double dt, vector< Vector2D > const &velocities, TracerStickerNames const &tracerstickernames) const
	Applies a small fix to the velocity of all mesh points once the time step is known. More...

Public Member Functions inherited from PointMotion
virtual	~PointMotion (void)
	Virtual destructor.

Detailed Description

Abstract class for custom motion of mesh generating points.

Definition at line 47 of file CustomMotion.hpp.

Constructor & Destructor Documentation

CustomMotion::CustomMotion	(	PointMotion const &	otherpm,
		CustomMotionCriteria const &	criteria
	)

Class constructor.

Parameters

otherpm	Another point motion scheme
criteria	Criterion for when to use other scheme

Definition at line 5 of file CustomMotion.cpp.

vector< Vector2D > CustomMotion::ApplyFix	(	Tessellation const &	tess,
		vector< ComputationalCell > const &	cells,
		double	time,
		double	dt,
		vector< Vector2D > const &	velocities,
		TracerStickerNames const &	tracerstickernames
	)		const

virtual

Applies a small fix to the velocity of all mesh points once the time step is known.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
velocities	Velocities of the points
dt	The time step
tracerstickernames	The names of the tracers and stickers

Reimplemented from PointMotion.

Definition at line 14 of file CustomMotion.cpp.

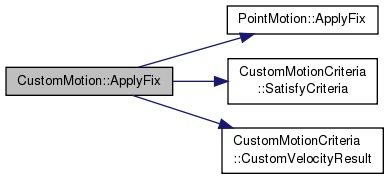

Here is the call graph for this function:

vector< Vector2D > CustomMotion::operator()	(	const Tessellation &	tess,
		const vector< ComputationalCell > &	cells,
		double	time,
		TracerStickerNames const &	tracerstickernames
	)		const

virtual

Calculates the velocity of all mesh points.

Parameters

tess	The tessellation
cells	Hydrodynamics cells
time	The simulation time
tracerstickernames	The names of the tracers and stickers

Implements PointMotion.

Definition at line 8 of file CustomMotion.cpp.

The documentation for this class was generated from the following files:
