ConditionExtensiveUpdater Class Reference

Updates the extensives based on a series of conditions and actions. More...

#include <ConditionExtensiveUpdater.hpp>

Inheritance diagram for ConditionExtensiveUpdater:

Collaboration diagram for ConditionExtensiveUpdater:

Classes
class	Action
	Action taken to update extensive. More...
class	Condition
	Determines the kind of cell. More...

Public Member Functions
	ConditionExtensiveUpdater (const vector< pair< const Condition *, const Action *> > &sequence)
	Class constructor. More...
void	operator() (const vector< Extensive > &fluxes, const PhysicalGeometry &pg, const Tessellation &tess, const double dt, const CacheData &cd, const vector< ComputationalCell > &cells, vector< Extensive > &extensives, double time, TracerStickerNames const &tracerstickernames) const
	Updates the extensive variables. More...
Public Member Functions inherited from ExtensiveUpdater
virtual	~ExtensiveUpdater (void)
	Class constructor.

Detailed Description

Updates the extensives based on a series of conditions and actions.

Definition at line 8 of file ConditionExtensiveUpdater.hpp.

Constructor & Destructor Documentation

ConditionExtensiveUpdater()

ConditionExtensiveUpdater::ConditionExtensiveUpdater ( const vector< pair< const Condition *, const Action *> > &  sequence )

explicit

Class constructor.

Parameters

sequence

Series of condition and action action pairs. Both have to be dynamically allocated pointers, and will be explicitly destructed upon descruction of the class

Definition at line 18 of file ConditionExtensiveUpdater.cpp.

Member Function Documentation

operator()()

void ConditionExtensiveUpdater::operator() ( const vector< Extensive > &  fluxes, const PhysicalGeometry &  pg, const Tessellation &  tess, const double  dt, const CacheData &  cd, const vector< ComputationalCell > &  cells, vector< Extensive > &  extensives, double  time, TracerStickerNames const &  tracerstickernames  ) const

virtual

Updates the extensive variables.

Parameters

fluxes	Fluxes
pg	Physical geometry
tess	Tessellation
dt	Time step
cd	Cache data
cells	Computational cells
extensives	Extensive variables
tracerstickernames	The names of the tracers and stickers
time	The time

Implements ExtensiveUpdater.

Definition at line 21 of file ConditionExtensiveUpdater.cpp.

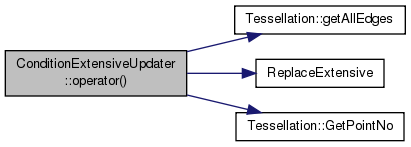

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• source/newtonian/two_dimensional/ConditionExtensiveUpdater.hpp
• source/newtonian/two_dimensional/ConditionExtensiveUpdater.cpp
