RefineStrategy.hpp File Reference

Abstract class for refinement scheme. More...

#include <algorithm>
#include "../../tessellation/tessellation.hpp"
#include "../two_dimensional/computational_cell_2d.hpp"
#include "../../misc/utils.hpp"

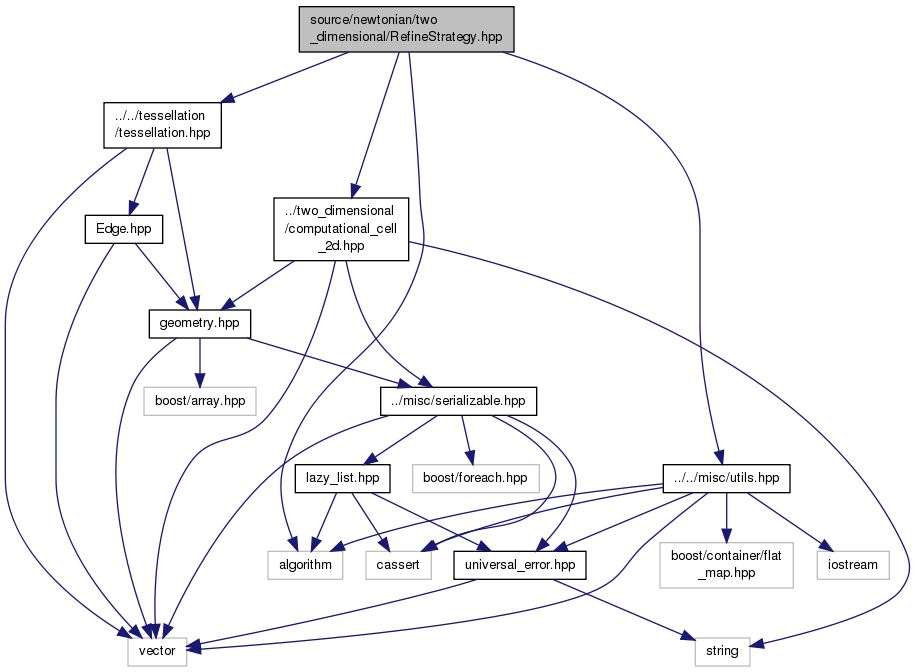

Include dependency graph for RefineStrategy.hpp:

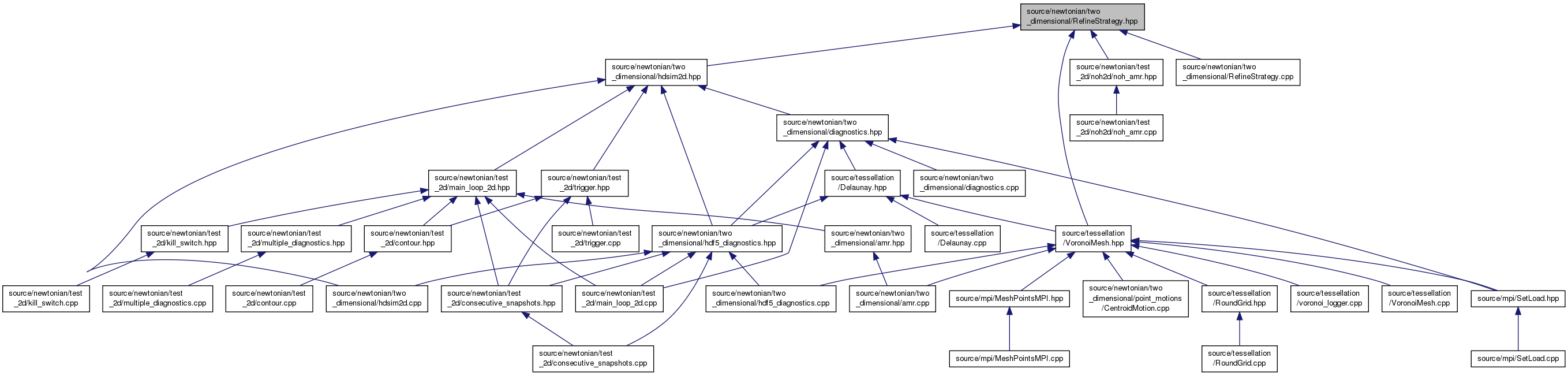

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	RefineStrategy
	Abstract class for refinment strategies. More...

Functions
Vector2D	FindBestSplit (Tessellation const *tess, int PointToRefine, vector< Edge > const &edges, double R, Vector2D &normal)
	Finds the best way to spit the cell by finding the line connecting the mesh point and the cell's CM. More...

Detailed Description

Abstract class for refinement scheme.

Author

Elad Steinberg

Definition in file RefineStrategy.hpp.

Function Documentation

FindBestSplit()

Vector2D FindBestSplit	(	Tessellation const *	tess,
		int	PointToRefine,
		vector< Edge > const &	edges,
		double	R,
		Vector2D &	normal
	)

Finds the best way to spit the cell by finding the line connecting the mesh point and the cell's CM.

Parameters

tess	The tessellation
PointToRefine	The index of the refined cell
edges	The edges of the refined cell
R	The width of the refined cell
normal	The normal to the split direction, this is one of the outputs

Returns

slope The direction where the new point should be at

Definition at line 113 of file RefineStrategy.cpp.

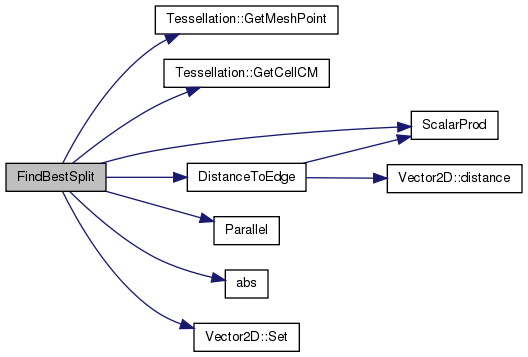

Here is the call graph for this function:
