Finds the intersection points between two polygons. More...

#include "geotests.hpp"
#include "Edge.hpp"

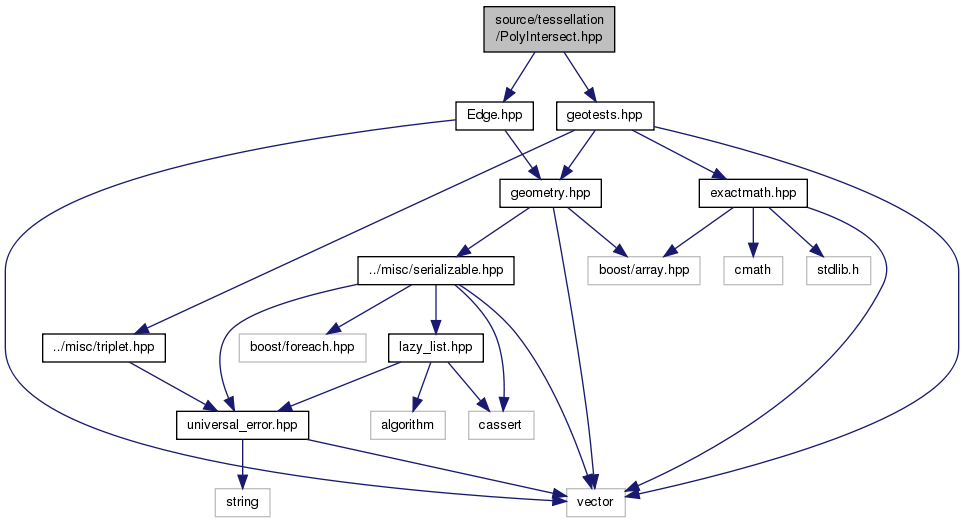

Include dependency graph for PolyIntersect.hpp:

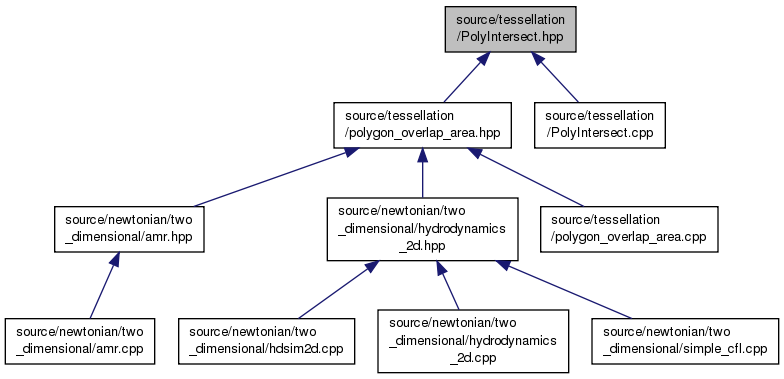

This graph shows which files directly or indirectly include this file:

Enumerations
enum	InFlags { UnKnown, Pi, Qi }
	Flags for if the segment is inner or outer.

enum	IntersectFlags { True, False, Par }
	Flags for there is an intersction or not or if the segments are parallel.

Functions
vector< Vector2D >	ConvexIntersect (vector< Vector2D > const &poly0, vector< Vector2D > const &poly1)
	Calculates the intersection between two convex polygons. More...

IntersectFlags	SegmentIntersection (Vector2D const &p0, Vector2D const &p1, Vector2D const &q0, Vector2D const &q1, Vector2D &Intersection)
	Checks if two segments intersect. More...

Detailed Description

Finds the intersection points between two polygons.

Definition in file PolyIntersect.hpp.

Function Documentation

vector<Vector2D> ConvexIntersect	(	vector< Vector2D > const &	poly0,
		vector< Vector2D > const &	poly1
	)

Calculates the intersection between two convex polygons.

Parameters

poly0	The first polygon
poly1	The second polygon

Definition at line 82 of file PolyIntersect.cpp.

Here is the caller graph for this function:

IntersectFlags SegmentIntersection	(	Vector2D const &	p0,
		Vector2D const &	p1,
		Vector2D const &	q0,
		Vector2D const &	q1,
		Vector2D &	Intersection
	)

Checks if two segments intersect.

Parameters

p0	The first vertice of the first segment
p1	The second vertice of the first segment
q0	The first vertice of the second segment
q1	The second vertice of the second segment
Intersection	The location of the intersection (if there is) given as output

Returns: A flag stating if thereis an intersection no intersection or the two segements parallel

Definition at line 6 of file PolyIntersect.cpp.

Here is the call graph for this function:
